Choose the E-Vac by the SCFM (SLPM) flow that best suits the performance needed for your application.

E-Vac Kits give you the ability to experiment with an assortment of Vacuum Cups. E-Vac Kits include a Muffler, an assortment of (4) pairs of Vacuum Cups (closely matched to the performance of that E-Vac), (2) straight, (2) elbow and (1) tee vacuum fittings, 10' of vacuum tubing and a mounting clip.

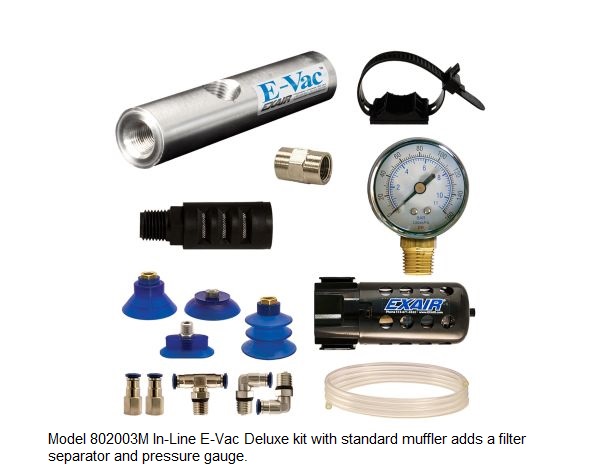

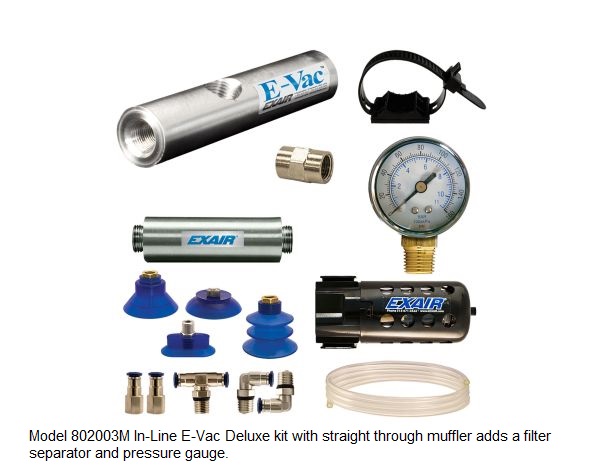

Deluxe Kits include the same items as the standard kit with the addition of an automatic drain filter separator for the compressed air supply and pressure regulator (with coupler).

• Pick and place of parts and equipment
• Bag/package opening
• Label placement
• Vacuum forming
• Mold evacuation
• Vacuum filling
• Leak testing
• Evacuate containers
• Clamping and chucking
• Paper alignment and feed in printing equipment
• Vacuum packaging
• Surface mounting
• Vacuum press for wood veneers and laminates
• Carton forming
• Robotic tooling
• Vacuum liquids for testing

• Compact, portable
• Single stage design eliminates fluctuations in vacuum
• Quiet
• Instantaneous vacuum
• Easy to mount at point of use
• Lightweight, rugged
• No moving parts – no maintenance
• 18 models
• Fast response – increases cycle time
• Durable 6061 aluminum construction
• Safe operation – no electricity

EXAIR provides a comprehensive range of mufflers, tubing, check valves, and fittings to help you build a vacuum system tailored to your specific application. Alongside these E-Vac vacuum generator accessories, we offer additional items to aid in the preparation and control of compressed air.

For optimal performance of E-Vac vacuum generators, it is crucial to use clean, dry compressed air. Our Automatic Drain Filter Separators effectively remove contaminants and moisture, ensuring the longevity and efficiency of your system. Additionally, our Oil Removal Filters eliminate oil particulates commonly found in compressed air systems.

We also supply pressure regulators, shutoff valves, compressed air hoses, fittings, and solenoid valves to electronically control the flow of compressed air.

EXAIR offers vacuum cups in a wide variety of sizes and shapes to meet the needs of your application. EXAIR's vacuum cups are made of vinyl that is ideal for geneeral purpose applications and provides excellent resistance to wear. The Durometer rating (used to indicate the flixibility and stiffness of the cup) is A50. The operating temperature is 32°F (0°C) to 125°F (51.7°C).

Optional silencing mufflers are available that permit maximum exhaust of the E-Vac unit so cycle speed is not reduced. The Standard Muffler (for use with In-Line E-Vacs only) has a closed end and is suitable for applications that are free of dust and debris. The Straight Through Muffler is recommended where particulate is present since it will not accumulate debris that can erode performance. Straight Through Mufflers offer the best sound level reduction (up to 26 dBA).

The vacuum port of the E-Vac has an NPT thread (a vacuum cup can be threaded directly into it). For vacuum cups that are remotely located, push-in connector fittings (most have global threads for use with NPT and BSP) can be installed on the E-Vac and the vacuum cup. Polyurethane vacuum tubing is available (10', 20', 30', 40' and 50' lengths) to connect them. For best performance, the length of the tubing should be minimized to achieve the best attach and release times.

A vacuum check valve is available to hold the vacuum in case of compressed air loss. It is designed for high flow so it doesn’t restrict airflow or slow the vacuum operation. Maximum vacuum can still be achieved without affecting the performance. E-Vac vacuum generators that are used without a check valve will release the load if there is a significant drop in compressed air pressure or the supply of compressed air is lost.
