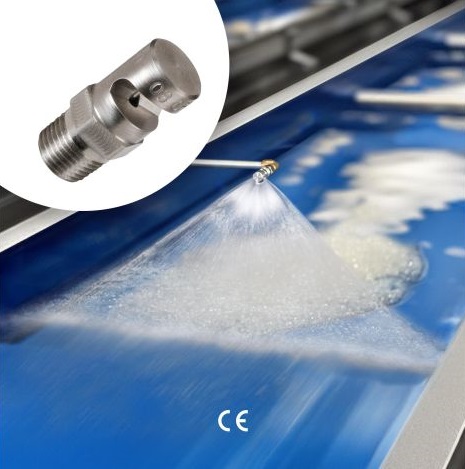

EXAIR’s PowerStream™ Liquid Atomizing Nozzle, 1/8 NPT provides a superior spraying solution for a wide range of industrial processes. These processes include cooling, rinsing, washing, coating, and dust control. The nozzle is designed to deliver a uniform, deflected flat fan spray pattern, ensuring efficient liquid distribution that is consistent across the full width of the spray.

The clog-resistant design makes it an excellent choice for environments dealing with particulates or potentially viscous fluids. Constructed from Type 303 stainless steel, the PowerStream™ nozzle can resist high temperatures and corrosive environments, with a maximum operating temperature of 800°F (426°C). It supports a variety of flow rates, allowing for flexible integration into existing systems or use in newly designed builds. The nozzle is suitable for use up to 250 PSI liquid pressure.

Send Enquiry

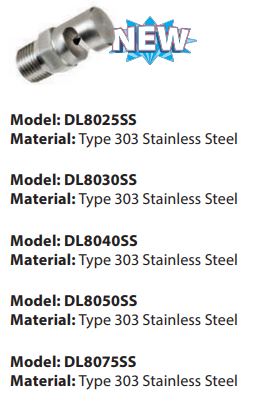

Liquid Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

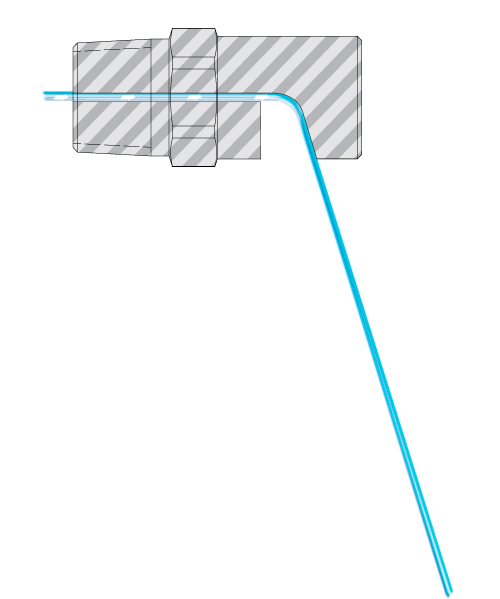

How PowerStream Nozzles Work

With these nozzles, the atomizing fluid is supplied into the body of the nozzle where it is directed through the exit orifice, and deflected off the smooth, angled surface of the nozzle tip. The resultant spray shape is a wide-angle, deflected flat-fan pattern.

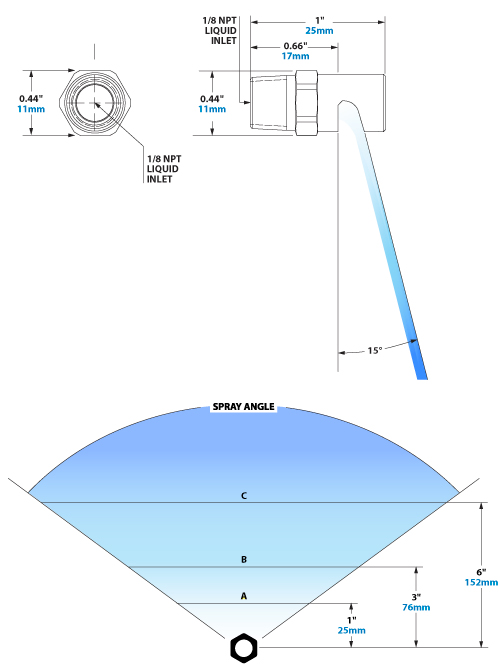

Spray Dimensions PowerStream Liquid Atomizing Nozzle (1/8 NPT Models)

Model	Pressure	Spray Angle	Width (inches)
DL8025SS		Degrees	A	B	C
	7 PSI	70	1.4	4.2	8.4
	20 PSI	80	1.7	5.0	10.1
	60 PSI	110	2.9	8.6	17.1
DL8030SS		Degrees	A	B	C
	7 PSI	80	1.7	5.0	10.1
	20 PSI	100	2.4	7.2	14.3
	60 PSI	105	2.6	7.8	15.6
DL8040SS		Degrees	A	B	C
	7 PSI	90	2.0	6.0	12.0
	20 PSI	110	2.9	8.6	17.1
	60 PSI	120	3.5	10.4	20.8
DL8050SS		Degrees	A	B	C
	7 PSI	120	3.5	10.4	20.8
	20 PSI	120	3.5	10.4	20.8
	60 PSI	130	4.3	12.9	25.7
DL8075SS		Degrees	A	B	C
	7 PSI	140	5.5	16.5	33.0
	20 PSI	140	5.5	16.5	33.0
	60 PSI	150	7.5	22.4	44.8

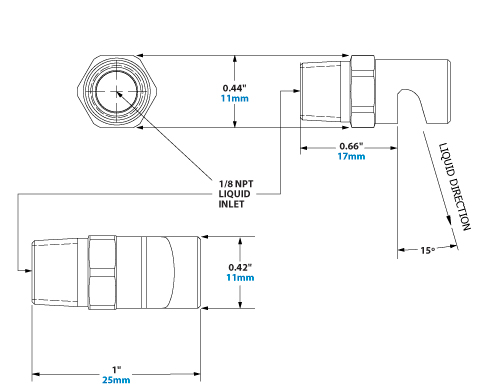

Dimensions & Performance PowerStream Liquid Atomizing Nozzle (1/8 NPT Models)

Model		DL8025SS	DL8030SS	DL8040SS	DL8050SS
Inlet Connection		1/8 NPT	1/8 NPT	1/8 NPT	1/8 NPT
Capacity		2.5	3	4	5
Max Free Passage		0.055"	0.063"	0.070"	0.079"
Flow Rate (GPM/LPM)		DL8025SS	DL8030SS	DL8040SS	DL8050SS
3 PSI	GPM	0.15	0.17	0.22	0.27
3 PSI	LPM	0.57	0.64	0.83	1.02
5 PSI	GPM	0.19	0.22	0.27	0.34
5 PSI	LPM	0.72	0.83	1.02	1.29
7 PSI	GPM	0.20	0.25	0.33	0.42
7 PSI	LPM	0.76	0.95	1.25	1.59
10 PSI	GPM	0.24	0.31	0.40	0.50
10 PSI	LPM	0.91	1.17	1.51	1.89
20 PSI	GPM	0.36	0.45	0.59	0.74
20 PSI	LPM	1.36	1.70	2.23	2.80
40 PSI	GPM	0.50	0.67	0.86	1.09
40 PSI	LPM	1.89	2.54	3.26	4.13
60 PSI	GPM	0.64	0.83	1.06	1.32
60 PSI	LPM	2.42	3.14	4.01	5.00

Model		DL8075SS
Inlet Connection		1/8 NPT
Capacity		7.5
Max Free Passage		0.094"
Flow Rate (GPM/LPM)		DL8075SS
3 PSI	GPM	0.38
3 PSI	LPM	1.44
5 PSI	GPM	0.50
5 PSI	LPM	1.89
7 PSI	GPM	0.61
7 PSI	LPM	2.31
10 PSI	GPM	0.75
10 PSI	LPM	2.84
20 PSI	GPM	1.08
20 PSI	LPM	4.09
40 PSI	GPM	1.51
40 PSI	LPM	5.72
60 PSI	GPM	1.84
60 PSI	LPM	6.97

Cooling, coating
Quenching
Dust suppression
Washing, rinsing
Foam breaking
Slurry spraying
Sanitizing, degreasing
Lubricating

Solid, durable, one-piece construction
Wide spray angle
Clog-resistant
All stainless steel construction
Compact footprint, versatile
