OmniStream™ Cone Liquid Atomizing Nozzle, 1/2 NPT

OmniStream™ Cone Liquid Atomizing Nozzle, 1/2 NPT

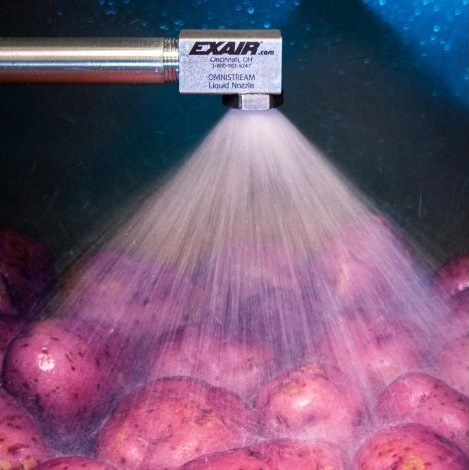

EXAIR’s 1/2 NPT OmniStream™ Cone Nozzles are designed with a full cone spray pattern, making them one of the most widely used spray nozzles. These nozzles are ideal for various industrial applications, including cooling, cleaning, washing, rinsing, and dust suppression. The vaneless design of these nozzles creates wide open internal features that resist clogging, making them effective for use with liquids containing particulates. They produce a uniform distribution in a full cone round pattern.

The right-angle design of the OmniStream™ Cone Nozzles is compact and can operate at liquid pressures of up to 250 PSI. These nozzles are commonly used with liquids such as water, rinse aids, and detergents, and they are also effective with chemicals, pesticides, and herbicides. The liquid flow rate can be adjusted by varying the liquid pressure.

Send Enquiry

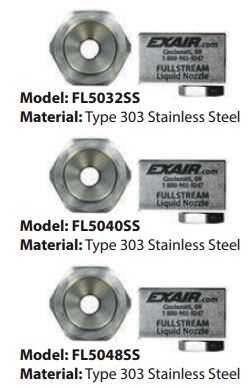

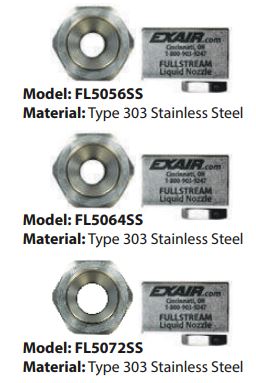

Liquid Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

How the OmniStream Cone Nozzle Works

With OmniStream Cone nozzles, the atomizing fluid is supplied into the body of the nozzle creating a swirling action within the vortex chamber. This vortex produces a full cone spray pattern when the precisely machined nozzle breaks the liquid surface tension as it exits the orifice at a controlled spray angle.

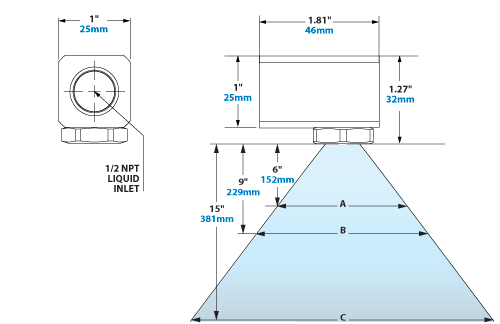

Spray Dimensions OmniStream Cone Liquid Atomizing Nozzle (1/2 NPT Models)

Model	Pressure	Width (inches)
FL5032SS		A	B	C
	7 PSI	9.4	14.1	23.4
	20 PSI	10.1	15.1	25.2
	60 PSI	12.0	18.0	30.0
FL5040SS		A	B	C
	7 PSI	10.1	15.1	25.2
	20 PSI	12.0	18.0	30.0
	60 PSI	13.1	19.6	32.7
FL5048SS		A	B	C
	7 PSI	10.1	15.1	25.2
	20 PSI	12.0	18.0	30.0
	60 PSI	13.1	19.6	32.7
FL5056SS		A	B	C
	7 PSI	11.0	16.5	27.5
	20 PSI	12.0	18.0	30.0
	60 PSI	13.1	19.6	32.7
FL5064SS		A	B	C
	7 PSI	11.0	16.5	27.5
	20 PSI	12.0	18.0	30.0
	60 PSI	13.1	19.6	32.7
FL5072SS		A	B	C
	7 PSI	11.0	16.5	27.5
	20 PSI	12.0	18.0	30.0
	60 PSI	13.1	19.6	32.7

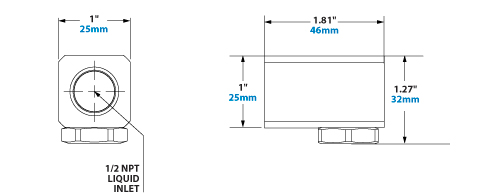

Dimensions & Performance OmniStream Cone Liquid Atomizing Nozzle (1/2 NPT Models)

Model		FL5032SS	FL5040SS	FL5048SS	FL5056SS
Inlet Connection		1/2 NPT	1/2 NPT	1/2 NPT	1/2 NPT
Capacity		32	40	48	56
Max Free Passage		0.201"	0.242"	0.281"	0.295"
Flow Rate (GPM/LPM)		FL5032SS	FL5040SS	FL5048SS	FL5056SS
3 PSI	GPM	1.74	2.68	3.06	3.32
3 PSI	LPM	6.59	10.14	11.28	12.57
5 PSI	GPM	2.46	3.14	3.56	4.18
5 PSI	LPM	9.31	11.89	13.48	15.82
7 PSI	GPM	2.80	3.52	3.96	4.67
7 PSI	LPM	10.60	13.32	15.00	17.68
10 PSI	GPM	3.20	4.00	4.80	5.60
10 PSI	LPM	12.11	15.14	18.17	21.20
20 PSI	GPM	4.46	5.60	6.81	7.89
20 PSI	LPM	16.88	21.20	25.78	29.87
40 PSI	GPM	6.28	7.80	9.58	11.22
40 PSI	LPM	23.77	29.53	39.26	42.47
60 PSI	GPM	7.30	8.76	11.73	13.74
60 PSI	LPM	27.63	33.16	44.40	52.01

Model		FL5064SS	FL5072SS
Inlet Connection		1/2 NPT	1/2 NPT
Capacity		64	72
Max Free Passage		0.328"	0.359"
Flow Rate (GPM/LPM)		FL5064SS	FL5072SS
3 PSI	GPM	3.50	4.08
3 PSI	LPM	13.25	15.44
5 PSI	GPM	4.50	5.00
5 PSI	LPM	17.03	18.93
7 PSI	GPM	5.15	6.17
7 PSI	LPM	19.49	23.36
10 PSI	GPM	6.40	7.20
10 PSI	LPM	24.23	27.25
20 PSI	GPM	9.13	10.17
20 PSI	LPM	34.56	38.50
40 PSI	GPM	12.70	14.40
40 PSI	LPM	48.07	54.51
60 PSI	GPM	15.81	17.64
60 PSI	LPM	59.85	66.77

Cooling, coating
Quenching
Dust suppression
Washing, rinsing
Foam breaking
Slurry spraying
Sanitizing, degreasing
Lubricating

High liquid flow rates
Increase surface area coverage
Increase liquid volume on your target
All stainless steel construction
Compact footprint, versatile

Download Catalog Download Installation and Maintenance
