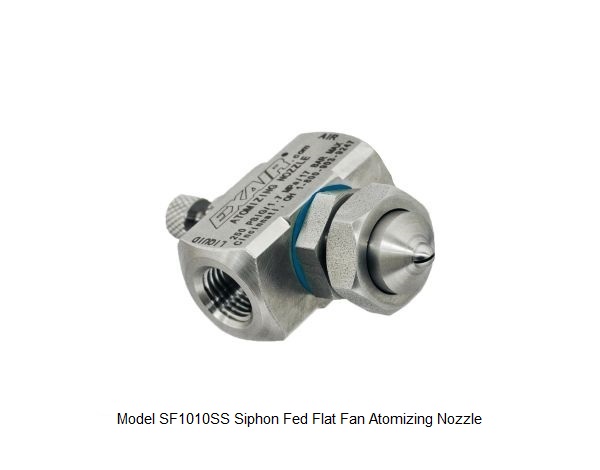

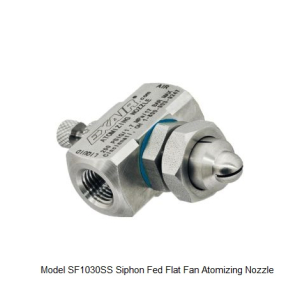

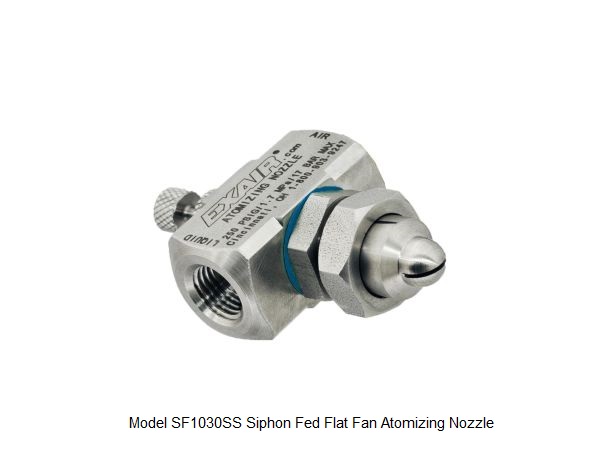

Siphon Fed Flat Fan Air Atomizing Nozzle

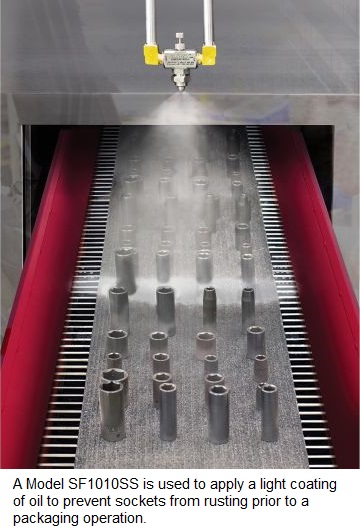

EXAIR's 1/8 FNPT and 1/4 FNPT Siphon Fed Flat Fan Pattern Nozzles are perfect for applications where no liquid pressure is available and a thin coating is needed over a wide area. The flow rate is adjustable via an adjusting valve, and these nozzles perform best with a suction height of 36" (914mm) or less. By utilizing compressed airflow, the nozzles draw in and internally mix the liquid, making the flow dependent on both gravity or suction height and the airflow. These siphon fed flat fan pattern nozzles are ideal for providing liquid over a broad band, such as in moving assembly lines, and are suitable for non-pressurized applications using siphon or gravity feed.

Send Enquiry
Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

+ibworks
Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

Dimensions & Performance
Siphon Fed Flat Fan Pattern Atomizing Nozzles
(1/4 FNPT Models)

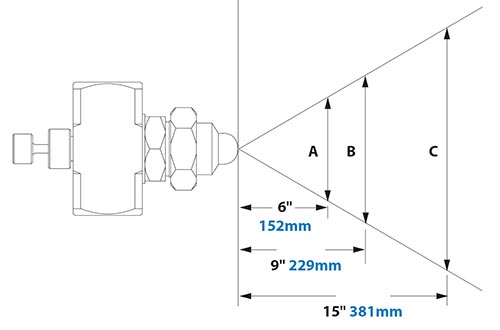

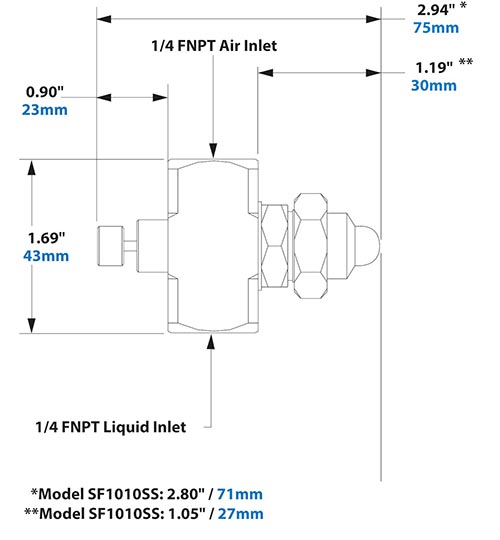

Dimensions - 1/4 FNPT Siphon Fed Flat Fan Pattern Atomizing Nozzle

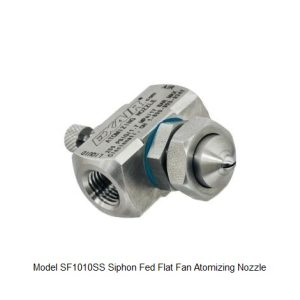

SF1010SS
SF1020SS
SF1030SS
Air Pressure PSI 10 20 30 20 30 40 50 20 30 40 50
BAR 0.7 1.4 2.1 1.4 2.1 2.8 3.4 1.4 2.1 2.8 3.4
Air Flow SCFM 0.9 1.3 1.7 2.3 2.9 3.5 4.3 2.2 2.8 3.3 4.0
SLPM 25.5 36.8 48.1 65.1 82.1 99.1 122 62.3 79.2 93.4 113
Gravity Head 18" 0.4 0.4 0.3 1.2 1.1 1.0 0.8 1.8 1.9 1.8 1.6
46 cm 1.5 1.5 1.1 4.5 4.2 3.8 3.0 6.8 7.2 6.8 6.1
12" 0.3 0.3 0.3 1.1 1.1 0.9 0.7 1.6 1.8 1.8 1.5
30 cm 1.1 1.1 1.1 4.2 4.2 3.4 2.6 6.1 6.8 6.8 5.7
6" 0.3 0.3 0.3 1.0 1.0 0.8 0.5 1.5 1.8 1.7 1.4
15 cm 1.1 1.1 1.1 3.8 3.8 3.0 1.9 5.7 6.8 6.4 5.3
Siphon Height 4" 0.2 0.3 0.3 0.9 0.8 0.7 0.5 1.4 1.7 1.6 1.4
10 cm 0.8 1.1 1.1 3.4 3.0 2.6 1.9 5.3 6.4 6.1 5.3
8" 0.2 0.3 0.3 0.8 0.8 0.7 0.4 1.4 1.7 1.6 1.3
20 cm 0.8 1.1 1.1 3.0 3.0 2.6 1.5 5.3 6.4 6.1 4.9
12" 0.2 0.3 -- 0.8 0.8 0.7 0.3 1.3 1.6 1.5 1.3
30 cm 0.8 1.1 -- 3.0 3.0 2.6 1.1 4.9 6.1 5.7 4.9
24" 0.2 0.2 -- 0.6 0.6 0.5 -- 1.1 1.4 1.3 1.1
61 cm 0.8 0.8 -- 2.3 2.3 1.9 -- 4.2 5.3 4.9 4.2
36" 0.1 0.2 -- 0.5 0.5 0.4 -- 1.0 1.2 1.2 1.0
91 cm 0.4 0.8 -- 1.9 1.9 1.5 -- 3.8 4.5 4.5 3.8

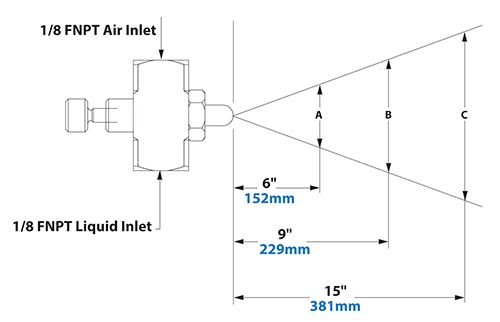

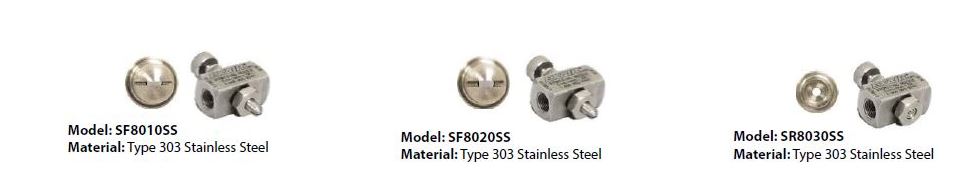

Siphon Fed Round Air Atomizing Nozzle- 1/8 NPT (Model SF8010SS, SF8020SS and SF8030SS)
+gen4IB

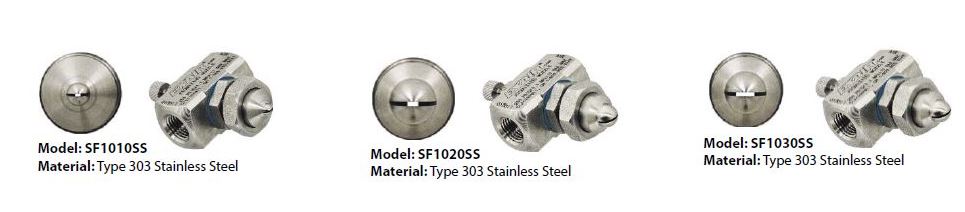

Siphon Fed Round Air Atomizing Nozzle- 1/4 NPT (Model SF1010SS, SF1020SS and SF1030SS)
+gen4IB
  • Washing
  • Rinsing
  • Coating
  • Cooling
  • Quenching
  • Wetting (moistening)
  • Humidification
  • Dust Control
  • Fully adjustable
  • Maximizes liquid dispersion
  • Minimizes liquid consumption
  • All stainless steel construction
  • Compact
  • Versatile

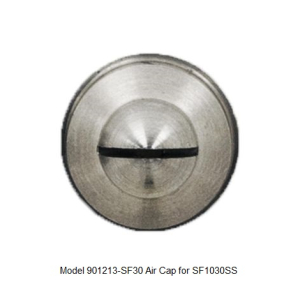

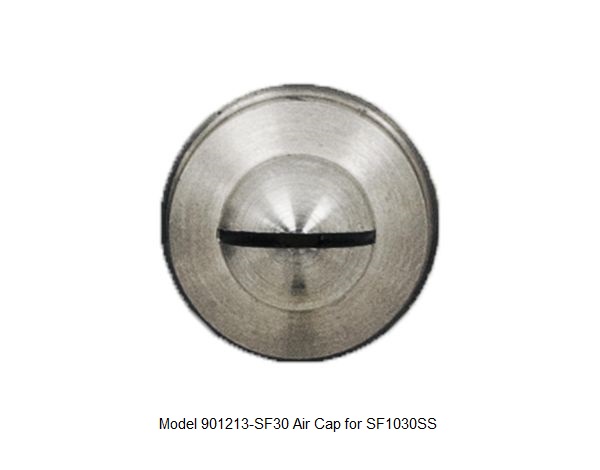

  • Interchangeable liquid and air caps
  • Minimizes air consumption
  • Fine atomization
