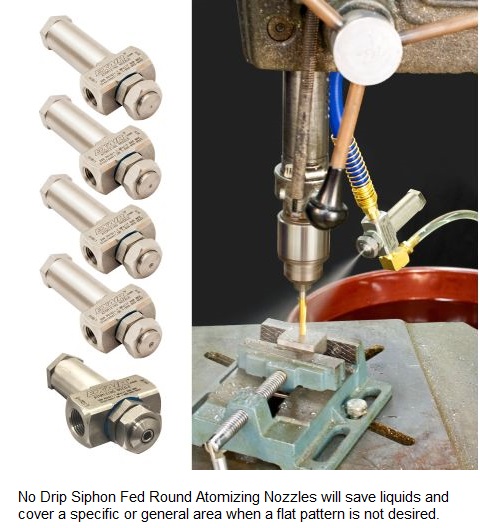

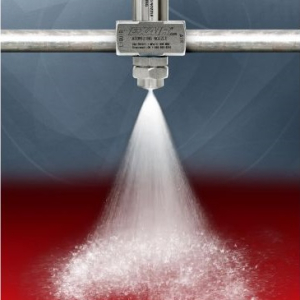

No Drip Siphon Fed Round Air Atomizing Nozzle

No Drip Siphon Fed Round Air Atomizing Nozzle

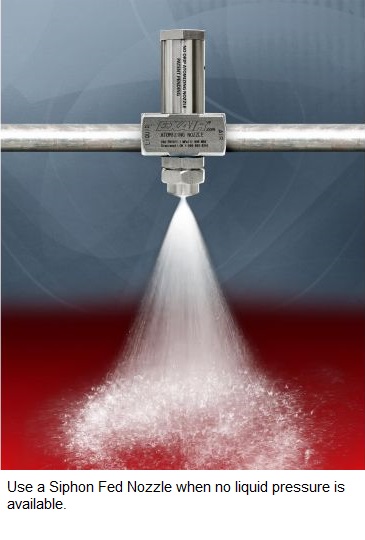

EXAIR's 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT no drip external mix narrow angle flat fan pattern nozzles are designed to conserve expensive liquids and protect product finishes by halting liquid flow when compressed air is shut off. These nozzles are ideal for applications requiring a high volume of liquid over a concentrated area. As external mix nozzles, they allow for independent control of airflow and liquid flow, offering great versatility.

These nozzles are perfect for situations where thicker liquids are needed for a heavy coating over a narrow band, such as on a paint line. Made from Type 303 stainless steel, they provide excellent corrosion resistance and are suitable for pressure-fed applications requiring independent air and liquid control.

Send Enquiry

Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

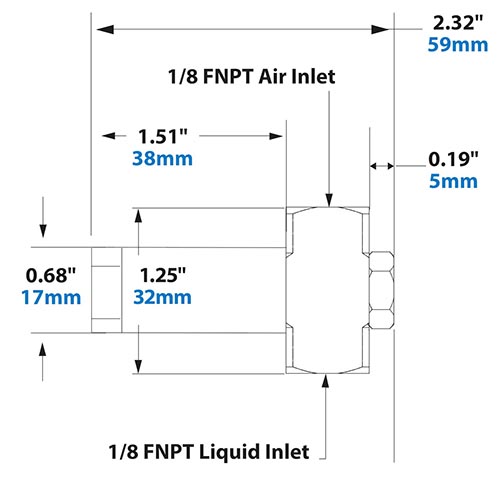

Dimensions & Performance No Drip Siphon Fed Round Pattern Atomizing Nozzles (1/8 FNPT Models)

		SR9010SS				SR9020SS				SR9030SS
Air Pressure	PSI	10	20	40	60	10	20	40	60	10	20	40	60
Air Pressure	BAR	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1
Air Flow	SCFM	0.48	0.68	1.35	2.12	0.59	1.16	1.9	2.62	0.55	1.06	1.86	2.45
Air Flow	SLPM	13.6	19.2	38.3	59.9	16.7	32.8	53.8	74.2	15.6	30.0	52.7	69.4
Gravity Head	18"	0.35	0.41	0.49	0.53	0.61	0.73	0.88	0.96	1.31	1.66	1.89	1.98
	46 cm	1.3	1.6	1.9	2.0	2.3	2.8	3.3	3.6	5.0	6.3	7.2	7.5
	12"	0.33	0.40	0.48	0.52	0.53	0.7	0.8	0.92	1.22	1.59	1.8	1.86
	30 cm	1.2	1.5	1.8	2.0	2.0	2.6	3.0	3.5	4.6	6.0	6.8	7.0
	6"	0.27	0.43	0.46	0.50	0.48	0.66	0.76	0.82	0.96	1.23	1.53	1.58
	15 cm	1.0	1.6	1.7	1.9	1.8	2.5	2.9	3.1	3.6	4.7	5.8	6.0
Siphon Height	4"	0.21	0.27	0.35	0.40	0.35	0.58	0.66	0.75	0.76	1.07	1.34	1.46
	10 cm	0.8	1.0	1.3	1.5	1.3	2.2	2.5	2.8	2.9	4.1	5.1	5.5
	8"	0.21	0.26	0.32	0.42	0.33	0.55	0.58	0.68	0.61	1.13	1.49	1.74
	20 cm	0.8	1.0	1.2	1.6	1.2	2.1	2.2	2.6	2.3	4.3	5.6	6.6
	12"	0.17	0.24	0.30	0.33	0.24	0.4	0.53	0.6	0.53	0.92	1.19	1.34
	30 cm	0.7	0.9	1.1	1.3	0.9	1.5	2.0	2.3	2.0	3.5	4.5	5.1
	24"	--	0.23	0.26	0.28	--	0.35	0.45	0.52	--	0.76	1.05	1.29
	61 cm	--	0.9	1.0	1.1	--	1.3	1.7	2.0	--	2.9	4.0	4.9
	36"	--	--	0.23	0.25	--	--	0.38	0.46	--	--	0.82	1.04
	91 cm	--	--	0.9	0.9	--	--	1.4	1.7	--	--	3.1	3.9

		SR9040SS				SR9050SS
Air Pressure	PSI	10	20	40	60	10	20	40	60
Air Pressure	BAR	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1
Air Flow	SCFM	1.40	2.03	3.17	4.42	1.84	2.93	4.02	5.12
Air Flow	SLPM	39.5	57.5	89.8	125	52.1	82.9	114	145
Gravity Head	18"	2.65	3.01	3.58	4.09	1.84	2.93	4.02	5.12
	46 cm	10.0	11.4	13.6	15.5	7.0	11.1	15.2	19.4
	12"	2.43	2.86	3.55	3.99	4.16	5.53	5.83	5.92
	30 cm	9.2	10.8	13.4	15.1	15.7	20.9	22.1	22.4
	6"	2.12	2.53	3.29	3.75	3.83	3.7	4.39	5.56
	15 cm	8.0	9.6	12.0	14.0	14.0	14.0	17.0	21.0
Siphon Height	4"	1.22	1.78	2.54	3.03	3.28	4.12	4.6	5.5
	10 cm	4.6	6.7	9.6	11.5	12.4	15.6	17.4	20.8
	8"	1.00	1.57	2.48	2.98	3.1	3.51	4.31	5.09
	20 cm	3.8	6.0	9.4	11.3	11.7	13.3	16.3	19.3
	12"	--	1.37	2.18	2.85	2.45	3.98	5.08	5.33
	30 cm	--	5.2	8.2	11.0	9.3	15.0	19.0	20.0
	24"	--	--	1.98	2.59	0.74	3.35	4.16	5.18
	61 cm	--	--	7.5	9.8	2.8	12.7	15.7	19.6
	36"	--	--	1.22	2.11	--	1.8	2.93	3.84
	91 cm	--	--	4.6	8.0	--	6.8	11.1	14.5

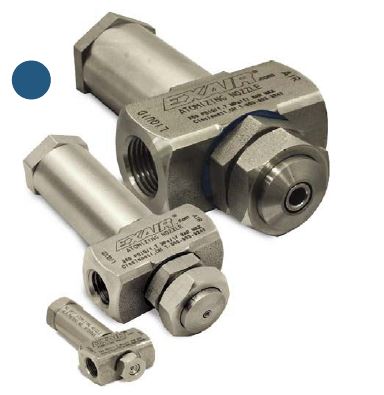

No Drip Siphon Fed Round Air Atomizing Nozzle Model

Part Number	Description
SR9010SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 0.53 GPH/2.02 LPH Max, 1/8 NPT
SR9020SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 0.96 GPH/3.63 LPH Max, 1/8 NPT
SR9030SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 1.98 GPH/7.50 LPH Max, 1/8 NPT
SR9040SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 4.09 GPH/15.48 LPH Max, 1/8 NPT
SR9050SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 5.12 GPH/19.38 LPH Max, 1/8 NPT
SR2010SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 0.8 GPH/3.0 LPH Max, 1/4 NPT

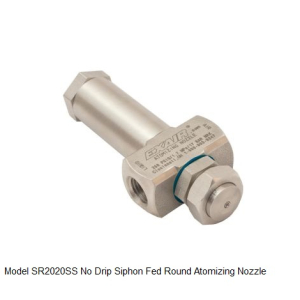

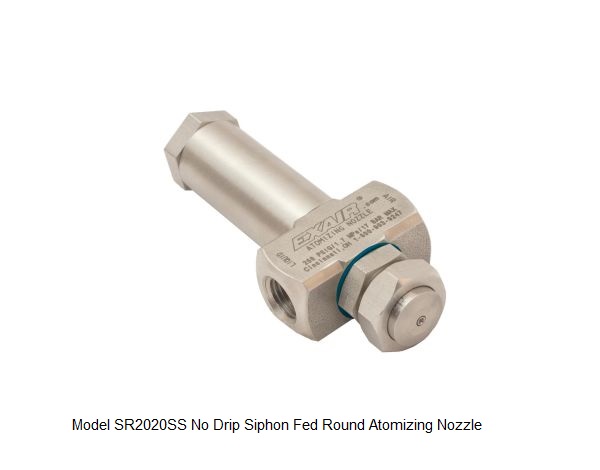

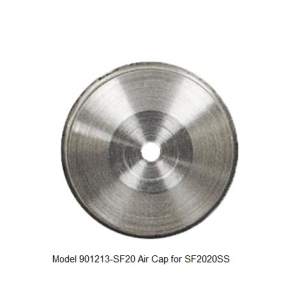

SR2020SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 1.9 GPH/7.2 LPH Max, 1/4 NPT
SR2030SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 5.8 GPH/22.0 LPH Max, 1/4 NPT
SR2040SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 15.0 GPH/56.8 LPH Max, 1/4 NPT

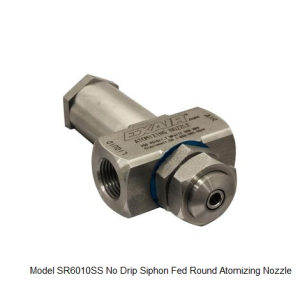

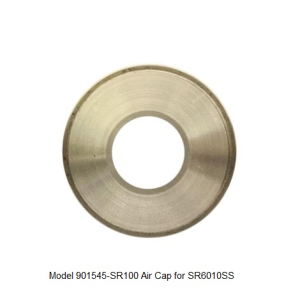

SR6010SS	No Drip Siphon Fed Round Pattern Atomizing Nozzles, 68.3 GPH/259 LPH Max, 1/2 NPT

Washing
Rinsing
Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile

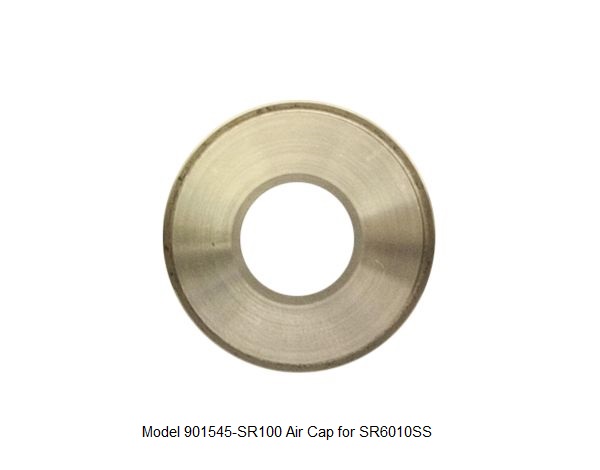

Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization

Download Catalog

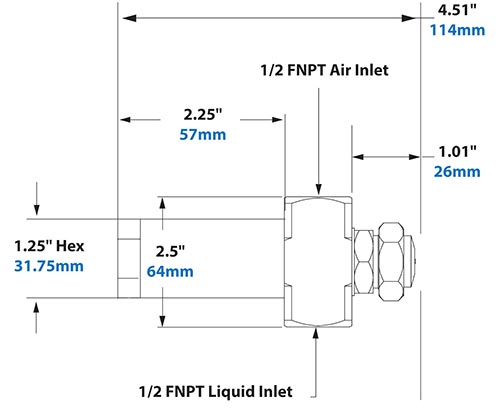

Dimensions & Performance No Drip Siphon Fed Round Pattern Atomizing Nozzles (1/2 FNPT Models)

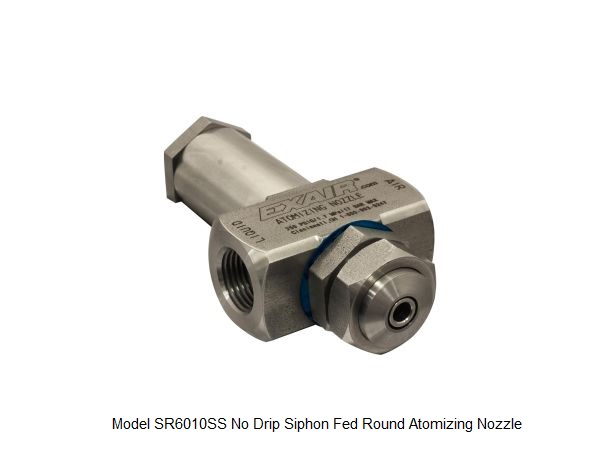

		SR6010SS
Air Pressure	PSI	20	30	40	50	60	70	80
Air Pressure	BAR	1.4	2.1	2.8	3.4	4.1	4.8	5.5
Air Flow	SCFM	19.3	25.2	32.8	36.7	42.2	47.7	52.9
Air Flow	SLPM	547	714	929	1039	1195	1351	1498
Gravity Head	18"	--	--	--	61	59.1	66	68.3
	46 cm	--	--	--	231	224	250	259
	12"	--	--	56.8	57.4	57.4	58.6	59.1
	30 cm	--	--	215	217	217	222	224
	6"	--	--	41	42.8	43.8	43.8	44.5
	15 cm	--	--	155	162	166	166	168
Siphon Height	4"	22.1	28.6	31.5	32.1	33.1	35.3	44.6
	10 cm	84	108	119	121	125	134	169
	8"	14.3	25.7	28.4	30.2	33	35.3	36.9
	20 cm	54	97	107	114	125	134	140
	12"	--	12.3	19.6	21.8	25.7	29.7	31.5
	30 cm	--	47	74	83	97	112	119
	24"	--	--	--	--	9.9	12.5	17.5
	61 cm	--	--	--	--	37	47	66

No Drip Siphon Fed Round Air Atomizing Nozzle

Air Atomizing Spray Nozzle Materials

Accessories

Dimensions & Performance

No Drip Siphon Fed Round Pattern Atomizing Nozzles

(1/8 FNPT Models)

SR9010SS

SR9020SS

SR9030SS

SR9040SS

SR9050SS

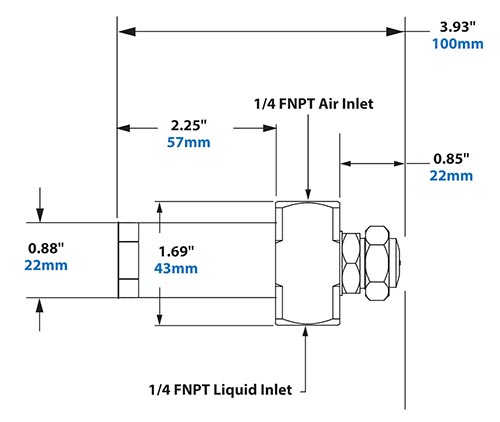

Dimensions & Performance

No Drip Siphon Fed Round Pattern Atomizing Nozzles

(1/4 FNPT Models)

SR2010SS

SR2020SS

SR2030SS

SR2040SS

Dimensions & Performance

No Drip Siphon Fed Round Pattern Atomizing Nozzles

(1/2 FNPT Models)

SR6010SS

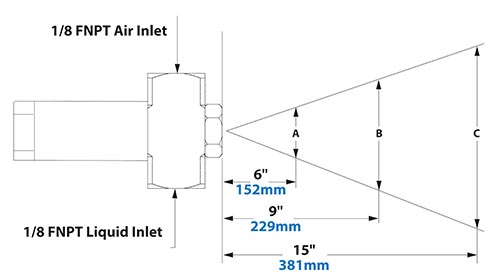

Spray Dimensions

No Drip Siphon Fed Round Pattern Atomizing Nozzle

(1/8 FNPT Models)

Spray Dimensions at 8" (20 cm) Siphon Height

Model

Air Pressure

Width

Max Depth

PSI

BAR

A

B

C

ft

m

in

cm

in

cm

in

cm

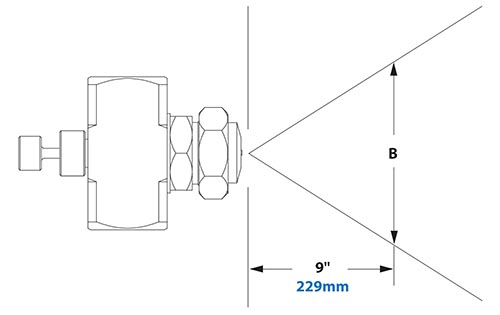

Spray Dimensions

No Drip Siphon Fed Round Pattern Atomizing Nozzle

(1/2 FNPT Models)

Spray Dimensions at 8" (20 cm) Siphon Height

Model

Air Pressure

Width

Max Depth

PSI

BAR

A

B

C

ft

m

in

cm

in

cm

in

cm

Spray Dimensions

No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzle

(1/2 FNPT Models)

Model

Air Pressure

Liquid Pressure

Width

Max Depth

PSI

BAR

PSI

BAR

A

B

C

ft
