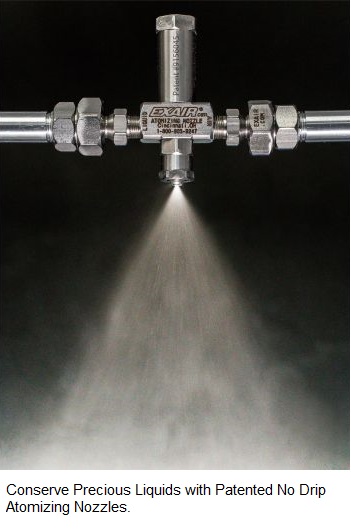

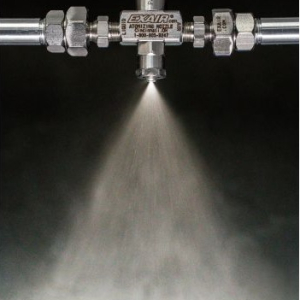

No Drip External Mix Round Air Atomizing Nozzle

EXAIR's 1/4 FNPT no drip external mix round pattern nozzles are designed to conserve valuable liquids and protect product finishes from drips. These nozzles are ideal for applications requiring a high volume of liquid over a specific or general area, but not in a flat pattern. They are perfect for spot treatments of parts, coating irregularly shaped objects, or applying a heavy coat to containers of parts. Additionally, they excel at controlling heavy dust and particulates.

As external mix nozzles, they allow for independent control of airflow and liquid flow, making them suitable for pressure-fed applications that require such control. Constructed from 303 stainless steel, they offer excellent corrosion resistance.

Send Enquiry
Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

+ibworks
Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

Dimensions & Performance
No Drip External Mix Round Pattern Atomizing Nozzles
(1/4 FNPT Models)

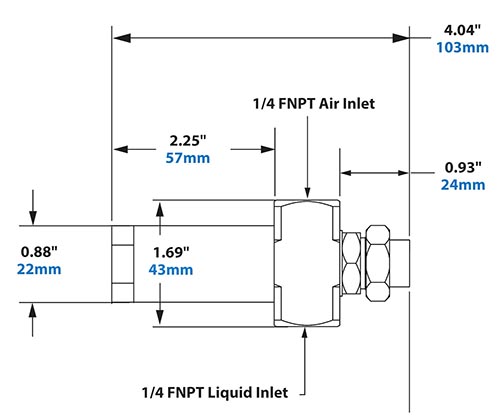

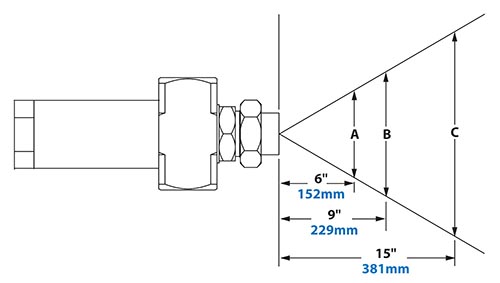

Dimensions - 1/4 FNPT No Drip External Mix Round Pattern Atomizing Nozzle
Liquid Pressure
ER2010SS
ER2020SS
ER2030SS
ER2040SS
ER2050SS
3 PSI / 0.2 BAR Air Press PSI 5 10 20 40 6 10 30 50 10 20 40 50 15 30 40 50 40 50 60 65
BAR 0.3 0.7 1.4 2.8 0.4 0.7 2.1 3.4 0.7 1.4 2.8 3.4 1.0 2.1 2.8 3.4 2.8 3.4 4.1 4.5
Liquid Flow GPH 1.0 1.0 1.0 1.0 2.5 2.5 2.5 2.5 4.4 4.4 4.4 4.4 10.0 10.0 10.0 10.0 18.0 18.0 18.0 18.0
LPH 3.8 3.8 3.8 3.8 9.5 9.5 9.5 9.5 16.7 16.7 16.7 16.7 37.9 37.9 37.9 37.9 16.1 16.1 16.1 16.1
Air Flow SCFM 0.9 1.3 1.9 3.0 0.9 1.3 2.4 3.6 4.0 6.0 9.5 11.2 4.9 7.7 9.5 11.2 14.0 16.8 19.7 21.0
SLPM 25.5 36.8 53.8 85.0 25.5 36.8 68.0 102 113 170 269 317 139 218 269 317 396 470 558 595
5 PSI / 0.3 BAR Air Press PSI 5 10 30 50 10 20 40 60 10 20 40 60 20 30 40 60 55 65 70 80
BAR 0.3 0.7 2.1 3.4 0.7 1.4 2.8 4.1 0.7 1.4 2.8 4.1 1.4 2.1 2.8 4.1 3.8 4.5 4.8 5.5
Liquid Flow GPH 1.4 1.4 1.4 1.4 3.2 3.2 3.2 3.2 5.5 5.5 5.5 5.5 13.5 13.5 13.5 13.5 26.0 26.0 26.0 26.0
LPH 5.3 5.3 5.3 5.3 12.1 12.1 12.1 12.1 20.8 20.8 20.8 20.8 51.1 51.1 51.1 51.1 98.0 98.0 98.0 98.0
Air Flow SCFM 0.9 1.3 2.4 3.5 1.3 1.8 3.1 4.1 4.0 6.0 9.5 11.7 6.0 7.7 9.5 11.7 18.0 21.0 22.3 25.3
SLPM 25.5 36.8 68.0 99.1 36.8 51.0 87.8 116 113 170 269 331 170 218 269 331 510 595 631 716
10 PSI / 0.7 BAR Air Press PSI 10 20 40 60 10 20 40 60 15 30 50 70 30 40 60 80 65 70 80 90
BAR 0.7 1.4 2.8 4.1 0.7 1.4 2.8 4.1 1.0 2.1 3.4 4.8 2.1 2.8 4.1 5.5 4.5 4.8 5.5 6.2
Liquid Flow GPH 1.9 1.9 1.9 1.9 4.3 4.3 4.3 4.3 7.6 7.6 7.6 7.6 18.8 18.8 18.8 18.8 41.0 41.0 41.0 41.0
LPH 7.2 7.2 7.2 7.2 16.3 16.3 16.3 16.3 28.8 28.8 28.8 28.8 71.2 71.2 71.2 71.2 155 155 155 155
Air Flow SCFM 1.3 1.9 3.0 4.1 1.3 1.9 3.1 4.1 4.9 7.7 11.2 13.4 7.7 9.5 11.7 15.3 21.0 22.3 25.3 27.9
SLPM 36.8 53.8 85.0 116 36.8 53.8 87.8 116 139 218 317 379 218 269 331 433 595 631 716 790
20 PSI / 1.4 BAR Air Press PSI 20 40 60 90 20 40 60 90 30 40 60 80 40 50 60 80 80 90 -- --
BAR 1.4 2.8 4.1 6.2 1.4 2.8 4.1 6.2 2.1 2.8 4.1 5.5 2.8 3.4 4.1 5.5 5.5 6.2 -- --
Liquid Flow GPH 2.7 2.7 2.7 2.7 5.9 5.9 5.9 5.9 11.0 11.0 11.0 11.0 27.6 27.6 27.6 27.6 60.0 60.0 60.0 --
LPH 10.2 10.2 10.2 10.2 22.3 22.3 22.3 22.3 41.6 41.6 41.6 41.6 104 104 104 104 227 227 227 --
Air Flow SCFM 1.9 3.0 4.1 5.7 2.9 3.1 4.1 5.9 7.7 9.5 11.7 15.3 9.5 11.2 11.7 15.3 25.3 27.9 -- --
SLPM 53.8 85.0 116 161 82.1 87.8 116 167 218 269 331 433 269 317 331 433 716 790 -- --
40 PSI / 2.8 BAR Air Press PSI 20 40 60 90 40 60 80 90 40 50 60 80 50 60 70 80 -- -- -- --
BAR 1.4 2.8 4.1 6.2 2.8 4.1 5.5 6.2 2.8 3.4 4.1 5.5 3.4 4.1 4.8 5.5 -- -- -- --
Liquid Flow GPH 3.8 3.8 3.8 3.8 7.5 7.5 7.5 7.5 14.0 14.0 14.0 14.0 31.0 31.0 31.0 31.0 -- -- -- --
LPH 14.4 14.4 14.4 14.4 28.4 28.4 28.4 28.4 53.0 53.0 53.0 53.0 117 117 117 117 -- -- -- --
Air Flow SCFM 1.9 3.0 4.1 5.7 3.0 4.1 5.3 5.9 9.5 11.2 11.7 15.3 11.2 11.7 13.4 15.3 -- -- -- --
SLPM 53.8 85.0 116 161 85.0 116 150 167 269 317 331 433 317 331 379 433 -- -- -- --
No Drip Internal Mix Deflected Flat Fan Pattern Air Atomizing Nozzle Model
+gen4IB
Part Number Description

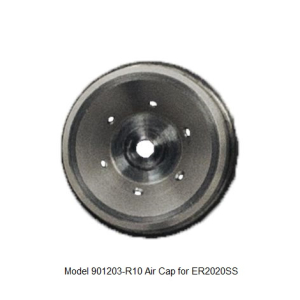

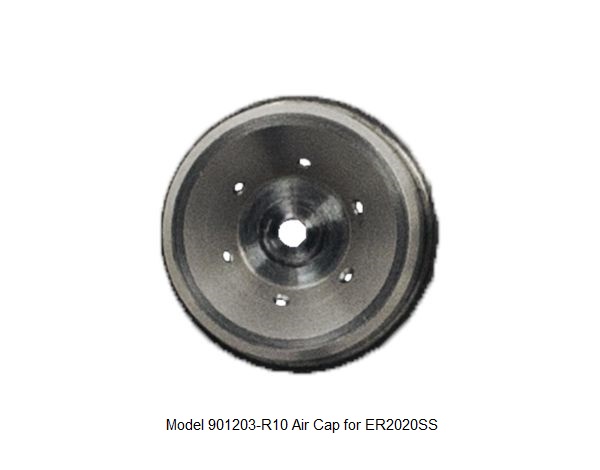

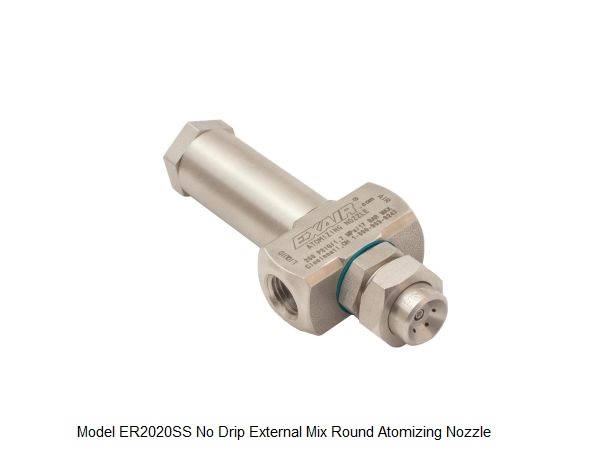

ER2010SS No Drip External Mix Round Pattern Atomizing Nozzles, 3.8 GPH/14.4 LPH Max, 1/4 NPT
ER2020SS No Drip External Mix Round Pattern Atomizing Nozzles, 7.5 GPH/28.4 LPH Max, 1/4 NPT
ER2030SS No Drip External Mix Round Pattern Atomizing Nozzles, 14.0 GPH/53.0 LPH Max, 1/4 NPT
ER2040SS No Drip External Mix Round Pattern Atomizing Nozzles, 31.0 GPH/117 LPH Max, 1/4 NPT
ER2050SS No Drip External Mix Round Pattern Atomizing Nozzles, 60.0 GPH/227 LPH Max, 1/4 NPT

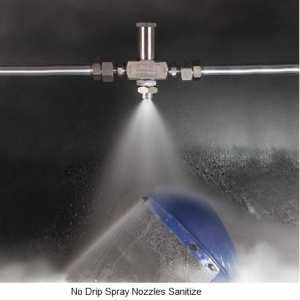

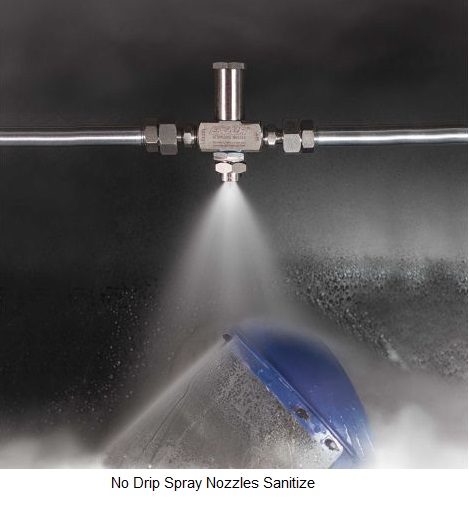

  • Washing
  • Rinsing
  • Coating
  • Cooling
  • Quenching
  • Wetting (moistening)
  • Humidification
  • Dust Control
  • Fully adjustable
  • Maximizes liquid dispersion
  • Minimizes liquid consumption
  • All stainless steel construction
  • Compact
  • Versatile
  • Interchangeable liquid and air caps
  • Minimizes air consumption
  • Fine atomization
