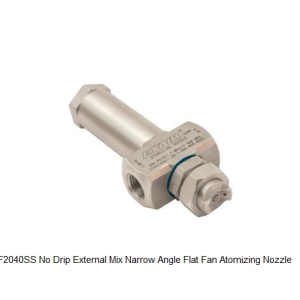

No Drip External Mix Narrow Angle Flat Fan Air Atomizing Nozzle

No Drip External Mix Narrow Angle Flat Fan Air Atomizing Nozzle

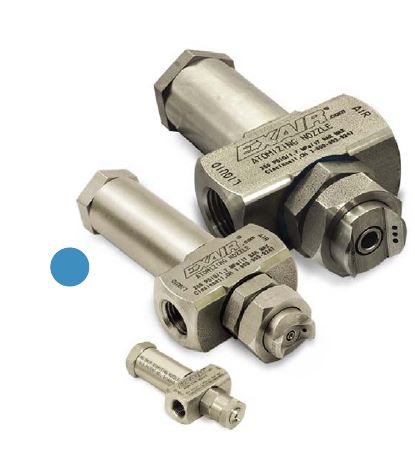

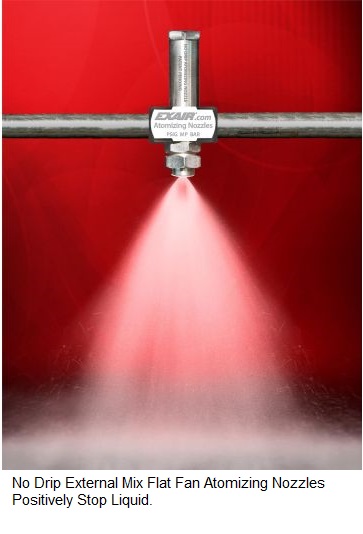

EXAIR's 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT no drip external mix narrow angle flat fan pattern nozzles are designed to conserve expensive liquids and protect product finishes by halting liquid flow when compressed air is shut off. These nozzles are ideal for applications requiring a high volume of liquid over a concentrated area. As external mix nozzles, they allow for independent control of airflow and liquid flow, offering great versatility.

These nozzles are perfect for situations where thicker liquids are needed for a heavy coating over a narrow band, such as on a paint line. Made from Type 303 stainless steel, they provide excellent corrosion resistance and are suitable for pressure-fed applications requiring independent air and liquid control.

Send Enquiry

Air Atomizing Spray Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

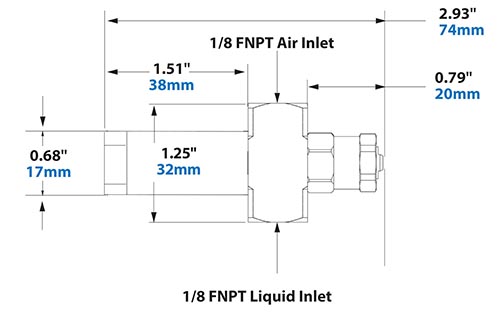

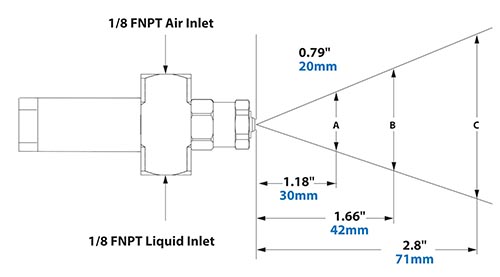

Dimensions & Performance No Drip External Mix Narrow Angle Flat Pattern Atomizing Nozzles (1/8 FNPT Models)

Liquid Pressure			EF9010SS			EF9020SS			EF9030SS
10 PSI / 0.7 BAR	Air Pressure	PSI	10	30	50	10	30	50	10	30	50
	Air Pressure	BAR	0.7	2.1	3.4	0.7	2.1	3.4	0.7	2.1	3.4
	Liquid Flow	GPH	1.22	1.22	1.22	2.00	2.00	2.00	4.47	4.47	4.47
	Liquid Flow	LPH	4.6	4.6	4.6	7.6	7.6	7.6	16.9	16.9	16.9
	Air Flow	SCFM	1.20	2.29	3.41	1.20	2.29	3.41	1.20	2.29	3.41
	Air Flow	SLPM	34.0	64.8	96.5	34.0	64.8	96.5	34.0	64.8	96.5
20 PSI / 1.4 BAR	Air Pressure	PSI	10	30	50	10	30	50	10	30	50
	Air Pressure	BAR	0.7	2.1	3.4	0.7	2.1	3.4	0.7	2.1	3.4
	Liquid Flow	GPH	1.64	1.64	1.64	2.56	2.56	2.56	5.60	5.60	5.60
	Liquid Flow	LPH	6.2	6.2	6.2	9.7	9.7	9.7	21.2	21.2	21.2
	Air Flow	SCFM	1.20	2.29	3.41	1.20	2.29	3.41	1.20	2.29	3.41
	Air Flow	SLPM	34.0	64.8	96.5	34.0	64.8	96.5	34.0	64.8	96.5
30 PSI / 2.1 BAR	Air Pressure	PSI	10	30	50	10	30	50	10	30	50
	Air Pressure	BAR	0.7	2.1	3.4	0.7	2.1	3.4	0.7	2.1	3.4
	Liquid Flow	GPH	1.82	1.82	1.82	2.67	2.67	2.67	6.30	6.30	6.30
	Liquid Flow	LPH	6.9	6.9	6.9	10.1	10.1	10.1	23.8	23.8	23.8
	Air Flow	SCFM	1.20	2.29	3.41	1.20	2.29	3.41	1.20	2.29	3.41
	Air Flow	SLPM	34.0	64.8	96.5	34.0	64.8	96.5	34.0	64.8	96.5
40 PSI / 2.8 BAR	Air Pressure	PSI	10	30	50	10	30	50	10	30	50
	Air Pressure	BAR	0.7	2.1	3.4	0.7	2.1	3.4	0.7	2.1	3.4
	Liquid Flow	GPH	2.00	2.00	2.00	2.93	2.93	2.93	7.67	7.67	7.67
	Liquid Flow	LPH	7.6	7.6	7.6	11.1	11.1	11.1	29.0	29.0	29.0
	Air Flow	SCFM	1.20	2.29	3.41	1.20	2.29	3.41	1.20	2.29	3.41
	Air Flow	SLPM	34.0	64.8	96.5	34.0	64.8	96.5	34.0	64.8	96.5

Liquid Pressure			EF9040SS				EF9050SS
10 PSI / 0.7 BAR	Air Pressure	PSI	20	30	40	50	30	40	60	70
	Air Pressure	BAR	1.4	2.1	2.8	3.4	2.1	2.8	4.1	4.8
	Liquid Flow	GPH	8.67	8.67	8.67	8.67	12.6	12.6	12.6	12.6
	Liquid Flow	LPH	32.8	32.8	32.8	32.8	47.7	47.7	47.7	47.7
	Air Flow	SCFM	1.95	2.50	3.13	3.68	2.28	2.84	3.87	4.45
	Air Flow	SLPM	55.2	70.8	88.6	104.2	64.5	80.4	109.6	126.0
20 PSI / 1.4 BAR	Air Pressure	PSI	20	30	40	50	30	40	60	70
	Air Pressure	BAR	1.4	2.1	2.8	3.4	2.1	2.8	4.1	4.8
	Liquid Flow	GPH	10.75	10.75	10.75	10.75	16.6	16.6	16.6	16.6
	Liquid Flow	LPH	40.7	40.7	40.7	40.7	62.8	62.8	62.8	62.8
	Air Flow	SCFM	1.95	2.5	3.13	3.68	2.28	2.84	3.87	4.45
	Air Flow	SLPM	55.2	70.8	88.6	104.2	64.5	80.4	109.6	126.0
30 PSI / 2.1 BAR	Air Pressure	PSI	20	30	40	50	30	40	60	70
	Air Pressure	BAR	1.4	2.1	2.8	3.4	2.1	2.8	4.1	4.8
	Liquid Flow	GPH	13.00	13.00	13.00	13.00	20.17	20.17	20.17	20.17
	Liquid Flow	LPH	49.2	49.2	49.2	49.2	76.4	76.4	76.4	76.4
	Air Flow	SCFM	1.95	2.5	3.13	3.68	2.28	2.84	3.87	4.45
	Air Flow	SLPM	55.2	70.8	8.6	104.2	64.5	80.4	109.6	126.0
40 PSI / 2.8 BAR	Air Pressure	PSI	20	30	40	50	30	40	60	70
	Air Pressure	BAR	1.4	2.1	2.8	3.4	2.1	2.8	4.1	4.8
	Liquid Flow	GPH	14.42	14.42	14.42	14.42	25.00	25.00	25.00	25.00
	Liquid Flow	LPH	54.6	54.6	54.6	54.6	94.6	94.6	94.6	94.6
	Air Flow	SCFM	1.95	2.5	3.13	3.68	2.28	2.84	3.87	4.45
	Air Flow	SLPM	55.2	70.8	88.6	104	64.5	80.4	110	126

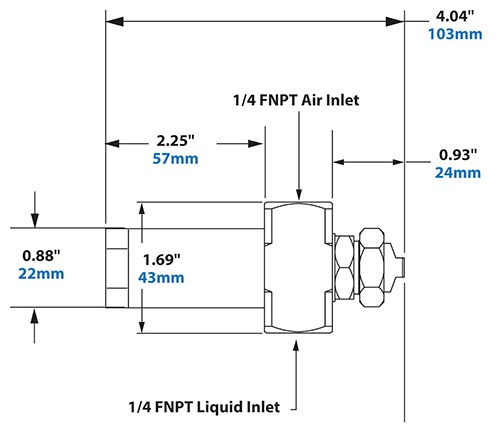

Dimensions & Performance No Drip External Mix Narrow Angle Flat Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			EF2010SS				EF2020SS				EF2030SS				EF2040SS
3 PSI / 0.27 BAR	Air Pressure	PSI	5	10	20	40	10	20	30	50	10	20	30	50	15	25	40	50
	Air Pressure	BAR	0.3	0.7	1.4	2.8	0.7	1.4	2.1	3.4	0.7	1.4	2.1	3.4	1.0	1.7	2.8	3.4
	Liquid Flow	GPH	1.0	1.0	1.0	1.0	2.5	2.5	2.5	2.5	4.4	4.4	4.4	4.4	10.0	10.0	10.0	10.0
	Liquid Flow	LPH	3.8	3.8	3.8	3.8	9.5	9.5	9.5	9.5	16.7	16.7	16.7	16.7	37.9	37.9	37.9	37.9
	Air Flow	SCFM	0.8	1.0	1.5	2.5	1.0	1.5	2.0	2.9	3.5	5.3	6.9	10.0	4.4	6.1	8.4	10.0
	Air Flow	SLPM	22.7	28.3	42.5	70.8	28.3	42.5	56.6	82.1	99.1	150	195	283	125	173	238	283
5 PSI / 0.3 BAR	Air Pressure	PSI	10	20	30	50	15	25	40	60	20	30	40	60	25	35	50	60
	Air Pressure	BAR	0.7	1.4	2.1	3.4	1.0	1.7	2.8	4.1	1.4	2.1	2.8	4.1	1.7	2.4	3.4	4.1
	Liquid Flow	GPH	1.4	1.4	1.4	1.4	3.2	3.2	3.2	3.2	5.5	5.5	5.5	5.5	13.5	13.5	13.5	13.5
	Liquid Flow	LPH	5.3	5.3	5.3	5.3	12.1	12.1	12.1	12.1	20.8	20.8	20.8	20.8	51.1	51.1	51.1	51.1
	Air Flow	SCFM	1.0	1.5	2.0	2.9	1.3	1.8	2.5	3.4	5.3	6.9	8.4	11.5	6.1	7.6	10.0	11.5
	Air Flow	SLPM	28.3	42.5	56.6	82.1	36.8	51.0	70.8	96.3	150	195	238	326	173	215	283	326
10 PSI / 0.7 BAR	Air Pressure	PSI	15	25	40	60	20	30	50	70	25	35	50	70	35	45	60	80
	Air Pressure	BAR	1.0	1.7	2.8	4.1	1.4	2.1	3.4	4.8	1.7	2.4	3.4	4.8	2.4	3.1	4.1	5.5
	Liquid Flow	GPH	1.9	1.9	1.9	1.9	4.3	4.3	4.3	4.3	7.6	7.6	7.6	7.6	18.8	18.8	18.8	18.8
	Liquid Flow	LPH	7.2	7.2	7.2	7.2	16.3	16.3	16.3	16.3	28.8	28.8	28.8	28.8	71.2	71.2	71.2	71.2
	Air Flow	SCFM	1.3	1.8	2.5	3.4	1.5	2.0	2.9	3.8	6.1	7.6	10.0	12.7	7.6	9.2	11.5	13.7
	Air Flow	SLPM	36.8	51.0	70.8	96.3	42.5	56.6	82.1	108	173	215	283	360	215	261	326	388
20 PSI / 1.4 BAR	Air Pressure	PSI	25	40	60	90	35	50	70	90	40	50	70	90	45	55	70	90
	Air Pressure	BAR	1.7	2.8	4.1	6.2	2.4	3.4	4.8	6.2	2.8	3.4	4.8	6.2	3.1	3.8	4.8	6.2
	Liquid Flow	GPH	2.7	2.7	2.7	2.7	5.9	5.9	5.9	5.9	11.0	11.0	11.0	11.0	27.6	27.6	27.6	27.6
	Liquid Flow	LPH	10.2	10.2	10.2	10.2	22.3	22.3	22.3	22.3	41.6	41.6	41.6	41.6	104	104	104	104
	Air Flow	SCFM	1.8	2.5	3.4	4.7	2.2	2.9	3.8	4.7	8.4	10.0	12.7	14.8	9.2	10.7	12.7	14.8
	Air Flow	SLPM	51.0	70.8	96.3	133	62.3	82.1	108	133	238	283	360	419	261	303	360	419
40 PSI / 2.8 BAR	Air Pressure	PSI	45	60	75	95	50	60	80	100	50	60	80	95	55	65	80	100
	Air Pressure	BAR	3.1	4.1	5.2	6.5	3.4	4.1	5.5	6.9	3.4	4.1	5.5	6.5	3.8	4.5	5.5	6.9
	Liquid Flow	GPH	3.8	3.8	3.8	3.8	7.5	7.5	7.5	7.5	14.0	14.0	14.0	14.0	31.0	31.0	31.0	31.0
	Liquid Flow	LPH	14.4	14.4	14.4	14.4	28.4	28.4	28.4	28.4	53.0	53.0	53.0	53.0	117	117	117	117
	Air Flow	SCFM	2.7	3.4	4.1	5.1	2.9	3.4	4.3	5.2	10.0	11.5	13.7	15.1	10.7	12.2	13.7	16.2
	Air Flow	SLPM	76.5	96.3	116	144	82.1	96.3	122	147	283	326	388	428	303	345	388	459

No Drip External Mix Narrow Angle Flat Fan Air Atomizing Nozzle

Part Number	Description
EF9010SS	S No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 2.00 GPH/7.57 LPH Max, 1/8 NPT
EF9020SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 2.93 GPH/11.09 LPH Max, 1/8 NPT
EF9030SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 7.67 GPH/29.03 LPH Max, 1/8 NPT
EF9040SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 14.42 GPH/54.59 LPH Max, 1/8 NPT
EF9050SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 25.00 GPH/94.64 LPH Max, 1/8 NPT

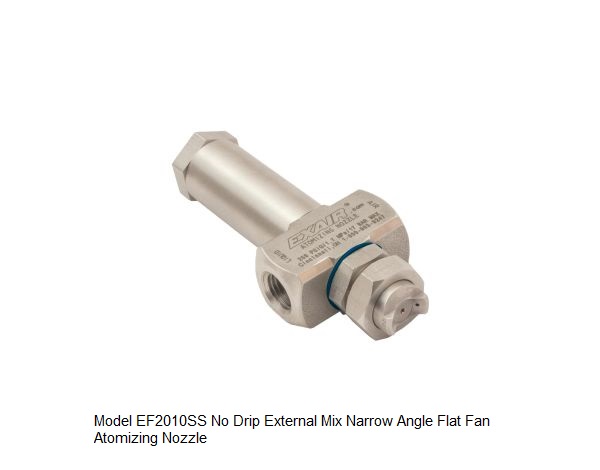

EF2010SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 3.8 GPH/14.4 LPH Max, 1/4 NPT
EF2020SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 7.5 GPH/28.4 LPH Max, 1/4 NPT
EF2030SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 14.0 GPH/53.0 LPH Max, 1/4 NPT

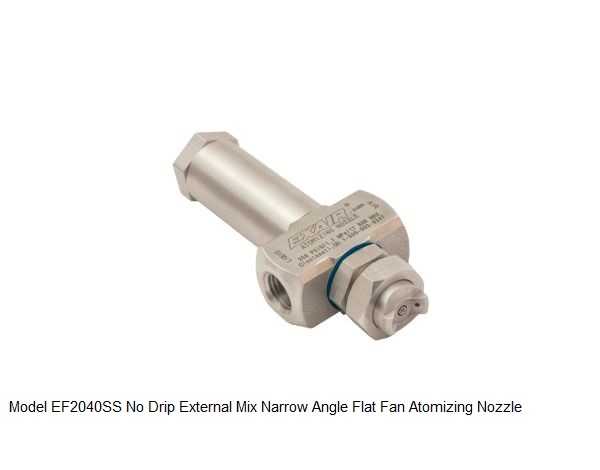

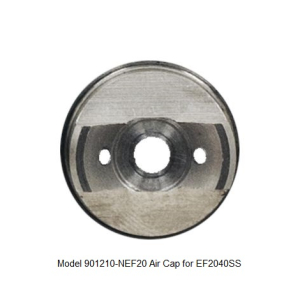

EF2040SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 31.0 GPH/117 LPH Max, 1/4 NPT

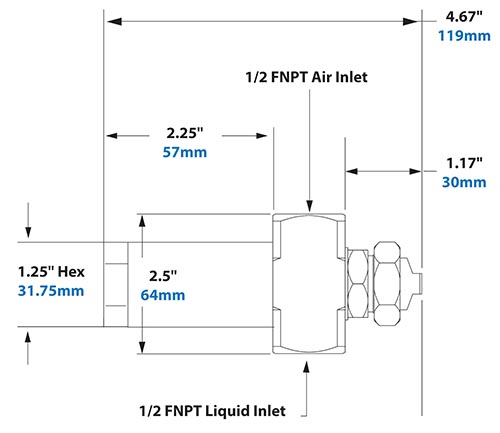

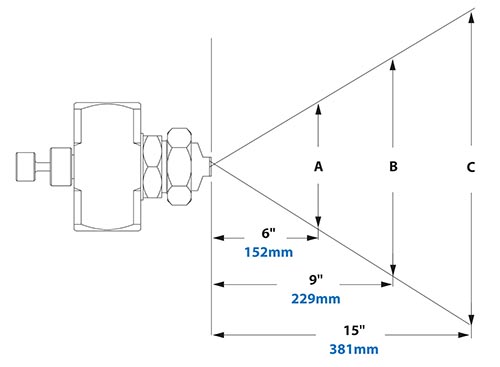

EF6010SS	No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzles, 303.0 GPH/1,147 LPH Max, 1/2 NPT

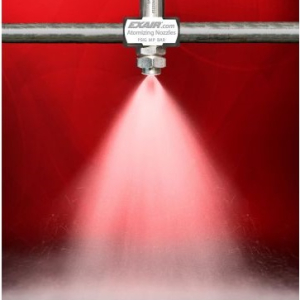

Washing
Rinsing
Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile

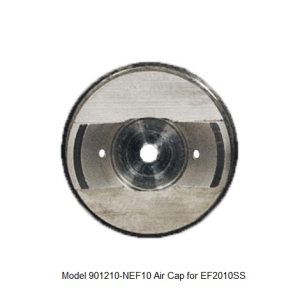

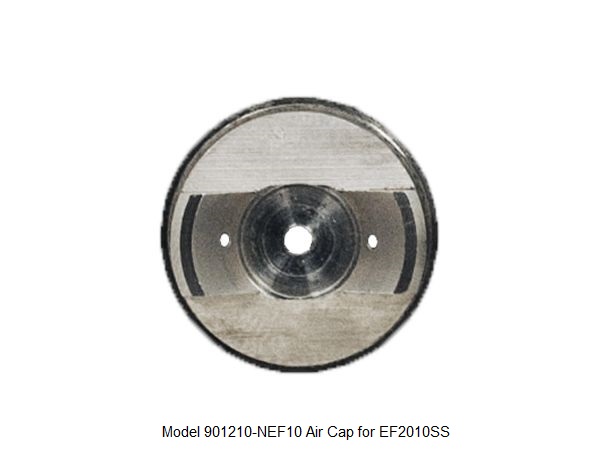

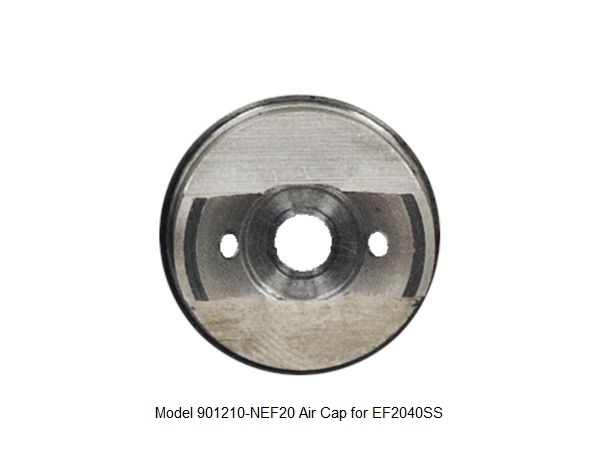

Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization

Download Catalog

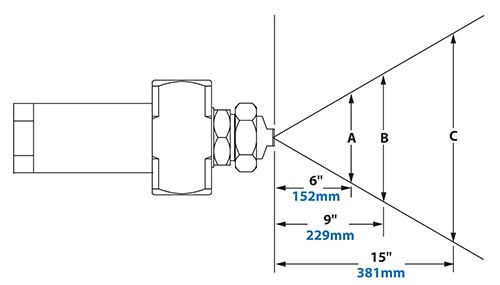

Spray Dimensions No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Nozzle (1/4 FNPT Models)

Model	Air Pressure		Liquid Pressure		Width						Max Depth
	PSI	BAR	PSI	BAR	A		B		C		ft	m
	PSI	BAR	PSI	BAR	in	cm	in	cm	in	cm	ft	m
EF2010SS	5	0.3	3	0.2	4.0	10.2	5.8	14.7	9.5	24.1	6	1.8
	25	1.7	5	0.3	5.5	14.0	8.0	20.3	10.0	25.4	12	3.7
	25	1.7	20	1.4	6.5	16.5	9.5	24.1	13.0	33.0	13	4.0
	50	3.4	20	1.4	6.3	16.0	9.3	23.6	12.0	30.5	16	4.9
	75	5.2	40	2.8	6.5	16.5	9.5	24.1	13.0	33.0	18	5.5
EF2020SS	10	0.7	3	0.2	4.5	11.4	7.0	17.8	11.0	27.9	9	2.7
	30	2.1	5	0.3	6.0	15.2	10.0	25.4	14.0	35.6	14	4.3
	35	2.4	20	1.4	6.5	16.5	11.0	27.9	16.0	40.6	17	5.2
	60	4.1	20	1.4	7.5	19.1	11.5	29.2	18.0	45.7	20	6.1
	75	5.2	40	2.8	7.5	191	12.0	30.5	17.0	43.2	22	6.7
EF2030SS	10	0.7	3	0.2	6.0	15.2	9.0	22.9	12.0	30.5	12	3.7
	35	2.4	5	0.3	6.8	17.3	9.0	22.9	12.0	30.5	20	6.1
	40	2.8	10	0.7	7.0	17.8	10.0	25.4	13.0	33.0	23	7.0
	60	4.1	20	1.4	7.0	17.8	11.0	27.9	14.0	35.6	30	9.1
	75	5.2	40	2.8	7.0	17.8	11.0	27.9	14.0	35.6	30	9.1
EF2040SS	15	1.0	3	0.2	6.0	15.2	10.0	25.4	14.0	35.6	13	4.0
	30	2.1	3	0.2	6.8	17.3	11.0	27.9	14.0	35.6	17	5.2
	50	3.4	10	0.7	7.5	19.1	12.0	30.5	15.0	38.1	22	6.7
	60	4.1	20	1.4	8.0	20.3	12.0	30.5	16.0	40.6	25	7.6
	80	5.5	40	2.8	7.0	17.8	11.0	27.9	15.0	38.1	27	8.2
