Internal Mix Narrow Angle Round Pattern Air Atomizing Nozzle

Internal Mix Narrow Angle Round Pattern Air Atomizing Nozzle

Available in 1/8 FNPT, 1/4 FNPT, and 1/2 FNPT sizes, these nozzles excel at delivering a concentrated mist of liquid. Their adjustable settings allow for versatile applications: from applying a heavy coat up close to projecting a fine mist over distances of up to 30 feet! These nozzles are perfect for precision tasks, such as lubricating parts during assembly or marking items on an assembly line. They are ideal for pressure-fed systems that do not require separate control of air and liquid.

Send Enquiry

Air Atomizing Spray Nozzle Materials

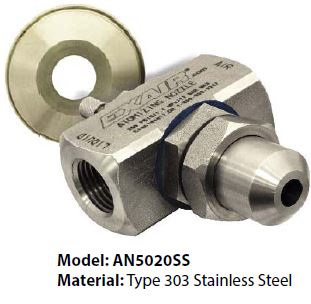

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

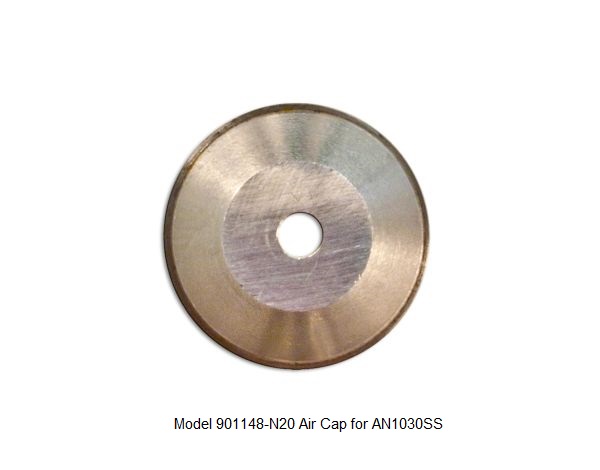

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

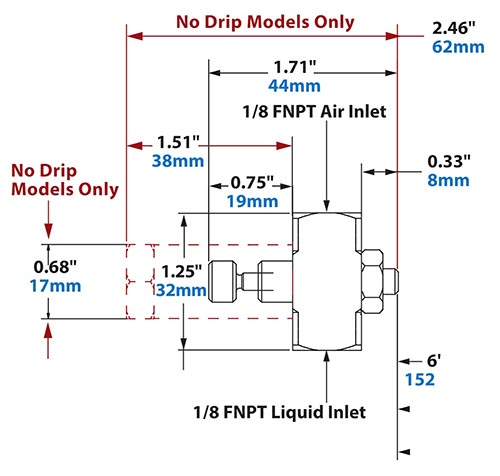

Dimensions & Performance Internal Mix Narrow Angle Round Pattern Atomizing Nozzles (1/8 FNPT Models)

Liquid Pressure			AN8010SS				AN8020SS				AN8030SS
10 PSI / 0.7 BAR	Air Pressure	PSI	10	12	14	--	10	12	14	-	12	16	24	28
	Air Pressure	BAR	0.7	0.8	1.0	--	0.7	0.8	1.0	-	0.8	1.1	1.7	1.9
	Liquid Flow	GPH	0.97	0.80	0.60	--	1.33	1.17	1.03	-	2.20	1.60	0.67	0.47
	Liquid Flow	LPH	3.7	3.0	2.3	--	5.0	4.4	3.9	-	8.3	6.1	2.5	1.8
	Air Flow	SCFM	0.25	0.32	0.4	--	0.43	0.5	0.6	-	0.47	0.56	0.95	1.07
	Air Flow	SLPM	7.1	9.1	11.3	-	12.2	14.2	17.0	-	13.3	15.9	26.9	30.3
20 PSI / 1.4 BAR	Air Pressure	PSI	14	18	22	26	18	20	22	-	22	26	38	42
	Air Pressure	BAR	1.0	1.2	1.5	1.8	1.2	1.4	1.5	-	1.5	1.8	2.6	2.9
	Liquid Flow	GPH	1.83	1.5	1.27	0.73	1.83	1.73	1.63	-	2.9	2.43	1.13	0.77
	Liquid Flow	LPH	6.9	5.7	4.8	2.8	6.9	6.5	6.2	-	11.0	9.2	4.3	2.9
	Air Flow	SCFM	0.32	0.39	0.52	0.67	0.71	0.75	0.84	-	0.75	0.82	1.35	1.53
	Air Flow	SLPM	9.1	11.0	14.7	19.0	20.1	21.2	23.8	-	21.2	23.2	38.2	43.3
30 PSI / 2.1 BAR	Air Pressure	PSI	24	28	32	38	24	28	32	40	30	34	46	52
	Air Pressure	BAR	1.7	1.9	2.2	2.6	1.7	1.9	2.2	2.8	2.1	2.3	3.2	3.6
	Liquid Flow	GPH	1.97	1.7	1.37	0.8	2.27	2.07	1.9	1.57	3.7	3.2	1.8	1.4
	Liquid Flow	LPH	7.5	6.4	5.2	3.0	8.6	7.8	7.2	5.9	14.0	12.1	6.8	5.3
	Air Flow	SCFM	0.52	0.59	0.71	0.93	0.91	0.99	1.09	1.45	0.96	1.00	1.45	1.76
	Air Flow	SLPM	14.7	16.7	20.1	26.3	25.8	28.0	30.9	41.0	27.2	28.3	41.0	49.8
40 PSI / 2.8 BAR	Air Pressure	PSI	32	36	40	48	30	34	38	48	36	40	52	60
	Air Pressure	BAR	2.2	2.5	2.8	3.3	2.1	2.3	2.6	3.3	2.5	2.8	3.6	4.1
	Liquid Flow	GPH	2.23	1.97	1.67	1.00	2.63	2.47	2.33	1.87	4.47	4.17	2.67	2.00
	Liquid Flow	LPH	8.4	7.5	6.3	3.8	10.0	9.3	8.8	7.1	16.9	15.8	10.1	7.6
	Air Flow	SCFM	0.67	0.74	0.84	1.09	1.05	1.12	1.20	1.53	1.09	1.12	1.49	1.87
	Air Flow	SLPM	19.0	20.9	23.8	30.9	29.7	31.7	34.0	43.3	30.9	31.7	42.2	52.9
60 PSI / 4.1 BAR	Air Pressure	PSI	50	54	58	66	40	46	52	70	48	52	64	70
	Air Pressure	BAR	3.4	3.7	4.0	4.6	2.8	3.2	3.6	4.8	3.3	3.6	4.4	4.8
	Liquid Flow	GPH	2.63	2.37	2.1	1.7	3.33	3.13	2.87	2.2	6.3	5.87	4.56	3.8
	Liquid Flow	LPH	10.0	9.0	7.9	6.4	12.6	11.8	10.9	8.3	23.8	22.2	17.3	14.4
	Air Flow	SCFM	0.98	1.02	1.12	1.21	1.31	1.4	1.6	2.2	1.28	1.3	1.59	1.84
	Air Flow	SLPM	27.7	28.9	31.7	34.3	37.1	39.6	45.3	62.3	36.2	36.8	45.0	52.1

Liquid Pressure			AN8040SS				AN8050SS
10 PSI / 0.7 BAR	Air Pressure	PSI	16	20	26	30	12	14	16	-
	Air Pressure	BAR	1.1	1.4	1.8	2.1	0.8	1.0	1.1	-
	Liquid Flow	GPH	4.87	3.57	1.87	1.03	7.60	6.10	4.80	-
	Liquid Flow	LPH	9.6	11.0	13.6	15.4	28.8	23.1	18.2	-
	Air Flow	SCFM	2.54	2.92	3.60	4.06	1.76	1.97	2.18	-
	Air Flow	SLPM	71.9	82.6	101.8	115.0	49.8	55.8	61.7	-
20 PSI / 1.4 BAR	Air Pressure	PSI	28	32	44	50	20	22	24	32
	Air Pressure	BAR	1.9	2.2	3.0	3.4	1.4	1.5	1.7	2.2
	Liquid Flow	GPH	6.60	5.60	2.43	1.33	11.63	10.53	9.43	5.07
	Liquid Flow	LPH	25.0	21.2	9.2	5.0	44.0	39.9	35.7	19.2
	Air Flow	SCFM	3.64	3.98	5.16	5.92	2.37	2.85	3.11	4.19
	Air Flow	SLPM	103.0	112.6	146.1	167.7	67.1	80.7	88.0	118.6
30 PSI / 2.1 BAR	Air Pressure	PSI	40	44	60	70	30	34	38	46
	Air Pressure	BAR	2.8	3.0	4.1	4.8	2.1	2.3	2.6	3.2
	Liquid Flow	GPH	7.83	6.87	2.80	1.23	13.5	11.37	9.07	5.6
	Liquid Flow	LPH	29.7	26.0	10.6	4.7	51.1	43.0	34.3	21.2
	Air Flow	SCFM	4.70	4.99	6.43	7.78	3.42	3.92	4.4	5.52
	Air Flow	SLPM	132.9	141.3	182.0	220.4	96.8	111.0	124.6	156.3
40 PSI / 2.8 BAR	Air Pressure	PSI	48	55	80	90	38	42	46	56
	Air Pressure	BAR	3.3	3.8	5.5	6.2	2.6	2.9	3.2	3.9
	Liquid Flow	GPH	9.33	8.17	2.53	1.27	15.4	14.1	12.3	7.7
	Liquid Flow	LPH	35.3	30.9	9.6	4.8	58.2	53.3	46.7	29.0
	Air Flow	SCFM	5.40	5.98	8.58	9.61	3.99	4.50	4.95	6.24
	Air Flow	SLPM	153	169	243	272	113	127	140	177
60 PSI / 4.1 BAR	Air Pressure	PSI	65	75	90	100	54	60	65	85
	Air Pressure	BAR	4.5	5.2	6.2	6.9	3.7	4.1	4.5	5.9
	Liquid Flow	GPH	12.0	10.8	8.17	6.13	18.9	17.2	15.7	8.13
	Liquid Flow	LPH	45.4	41.0	30.9	23.2	71.7	65.1	59.4	30.8
	Air Flow	SCFM	6.70	7.57	9.03	9.90	5.17	5.83	6.45	8.58
	Air Flow	SLPM	190	214	256	280	146	165	183	243

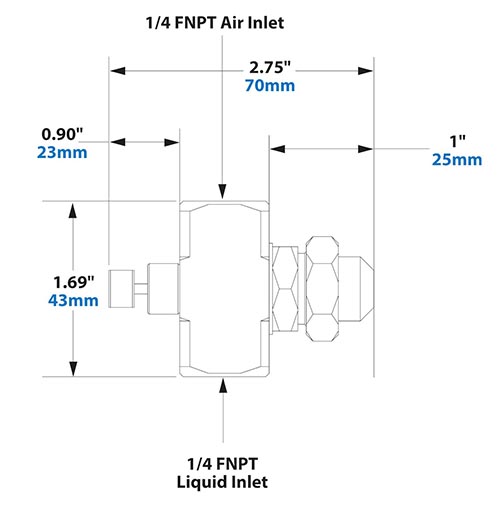

Dimensions & Performance Internal Mix Narrow Angle Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			AN1010SS				AN1020SS				AN1030SS				AN1040SS
10 PSI / 0.7 BAR	Air Pressure	PSI	10	12	14	--	16	20	24	28	12	14	16	18	14	16	--	--
	Air Pressure	BAR	0.7	0.8	1.0	--	1.1	1.4	1.7	1.9	0.8	1.0	1.1	1.2	1.0	1.1	--	--
	Liquid Flow	GPH	1.4	1.2	1.1	--	3.7	2.5	1.4	0.6	7.8	6.0	4.4	3.3	6.3	3.0	--	--
	Liquid Flow	LPH	5.3	4.5	4.2	--	14.0	9.5	5.3	2.3	29.5	22.7	16.7	12.5	23.8	11.4	--	--
	Air Flow	SCFM	0.6	0.7	0.8	--	2.8	3.4	4.0	4.6	1.9	2.2	2.6	2.9	3.5	4.2	--	--
	Air Flow	SLPM	17	20	23	--	79	96	113	130	54	62	74	82	99	119	--	--
20 PSI / 1.4 BAR	Air Pressure	PSI	18	22	24	26	28	36	40	44	20	24	28	32	20	24	26	28
	Air Pressure	BAR	1.2	1.5	1.7	1.8	1.9	2.5	2.8	3.0	1.4	1.7	1.9	2.2	1.4	1.7	1.8	1.9
	Liquid Flow	GPH	1.8	1.6	1.5	1.3	5.2	2.7	1.7	0.8	12.9	9.8	7.0	4.1	24	13	9.0	5.5
	Liquid Flow	LPH	6.8	6.1	5.7	4.9	19.7	10.2	6.4	3.0	48.8	37.1	26.5	15.5	90.8	49.2	34.1	20.8
	Air Flow	SCFM	0.9	1.0	1.1	1.2	4.0	5.1	5.7	6.4	2.5	3.0	3.6	4.4	3.0	4.2	4.9	5.6
	Air Flow	SLPM	25	28	31	34	113	144	161	181	71	85	102	125	85	119	139	159
30 PSI / 2.1 BAR	Air Pressure	PSI	24	32	36	40	40	48	55	60	30	38	42	46	28	32	36	40
	Air Pressure	BAR	1.7	2.2	2.5	2.8	2.8	3.3	3.8	4.1	2.1	2.6	2.9	3.2	1.9	2.2	2.5	2.8
	Liquid Flow	GPH	2.3	1.9	1.6	1.3	6.0	3.8	2.1	1.1	15.1	9.4	7.0	5.0	33.0	24	12.5	6.0
	Liquid Flow	LPH	8.7	7.2	6.1	4.9	22.7	14.4	7.9	4.2	57.2	35.6	26.5	18.9	125	90.8	47.3	22.7
	Air Flow	SCFM	1.0	1.3	1.5	1.7	5.2	6.4	7.3	8.1	3.4	4.5	5.1	5.9	3.4	4.6	5.9	7.4
	Air Flow	SLPM	28	37	42	48	147	181	207	229	96	127	144	167	96	130	167	210
40 PSI / 2.8 BAR	Air Pressure	PSI	30	38	44	48	48	65	75	80	38	46	52	56	32	40	46	50
	Air Pressure	BAR	2.1	2.6	3.0	3.3	3.3	4.5	5.2	5.5	2.6	3.2	3.6	3.9	2.2	2.8	3.2	3.4
	Liquid Flow	GPH	2.7	2.3	1.9	1.7	7.0	3.6	1.4	0.8	18	13.1	9.6	7.3	46.5	30.0	16.5	10.3
	Liquid Flow	LPH	10.2	8.7	7.2	6.4	26.5	13.6	5.3	3.0	68.1	49.6	36.3	27.6	176	114	62.5	39.0
	Air Flow	SCFM	1.2	1.5	1.7	2.0	5.9	8.1	9.8	10.2	4.1	5.1	6.0	6.6	2.8	5.1	6.8	8.2
	Air Flow	SLPM	34	42	48	57	167	229	277	289	116	144	170	187	79	144	193	232
60 PSI / 4.1 BAR	Air Pressure	PSI	40	52	62	70	65	80	90	100	54	65	75	85	42	50	58	70
	Air Pressure	BAR	2.8	3.6	4.3	4.8	4.5	5.5	6.2	6.9	3.7	4.5	5.2	5.9	2.9	3.4	4.0	4.8
	Liquid Flow	GPH	3.3	2.8	2.3	1.9	9.9	6.6	4.5	2.4	23	17.1	12.3	7.3	66	54.0	39.0	15.8
	Liquid Flow	LPH	12.5	10.6	8.7	7.2	37.5	25.0	17.0	9.1	87.1	64.7	46.6	27.6	250	204	148	60
	Air Flow	SCFM	1.5	1.9	2.4	2.8	7.0	8.6	10.1	11.3	5.3	6.7	8.0	9.6	2.7	4.3	6.6	10.2
	Air Flow	SLPM	42	54	68	79	198	244	286	320	150	190	227	272	76	122	187	289

Dimensions & Performance Internal Mix Narrow Angle Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			AN1010SS				AN1020SS				AN1030SS				AN1040SS
10 PSI / 0.7 BAR	Air Pressure	PSI	10	12	14	--	16	20	24	28	12	14	16	18	14	16	--	--
	Air Pressure	BAR	0.7	0.8	1.0	--	1.1	1.4	1.7	1.9	0.8	1.0	1.1	1.2	1.0	1.1	--	--
	Liquid Flow	GPH	1.4	1.2	1.1	--	3.7	2.5	1.4	0.6	7.8	6.0	4.4	3.3	6.3	3.0	--	--
	Liquid Flow	LPH	5.3	4.5	4.2	--	14.0	9.5	5.3	2.3	29.5	22.7	16.7	12.5	23.8	11.4	--	--
	Air Flow	SCFM	0.6	0.7	0.8	--	2.8	3.4	4.0	4.6	1.9	2.2	2.6	2.9	3.5	4.2	--	--
	Air Flow	SLPM	17	20	23	--	79	96	113	130	54	62	74	82	99	119	--	--
20 PSI / 1.4 BAR	Air Pressure	PSI	18	22	24	26	28	36	40	44	20	24	28	32	20	24	26	28
	Air Pressure	BAR	1.2	1.5	1.7	1.8	1.9	2.5	2.8	3.0	1.4	1.7	1.9	2.2	1.4	1.7	1.8	1.9
	Liquid Flow	GPH	1.8	1.6	1.5	1.3	5.2	2.7	1.7	0.8	12.9	9.8	7.0	4.1	24	13	9.0	5.5
	Liquid Flow	LPH	6.8	6.1	5.7	4.9	19.7	10.2	6.4	3.0	48.8	37.1	26.5	15.5	90.8	49.2	34.1	20.8
	Air Flow	SCFM	0.9	1.0	1.1	1.2	4.0	5.1	5.7	6.4	2.5	3.0	3.6	4.4	3.0	4.2	4.9	5.6
	Air Flow	SLPM	25	28	31	34	113	144	161	181	71	85	102	125	85	119	139	159
30 PSI / 2.1 BAR	Air Pressure	PSI	24	32	36	40	40	48	55	60	30	38	42	46	28	32	36	40
	Air Pressure	BAR	1.7	2.2	2.5	2.8	2.8	3.3	3.8	4.1	2.1	2.6	2.9	3.2	1.9	2.2	2.5	2.8
	Liquid Flow	GPH	2.3	1.9	1.6	1.3	6.0	3.8	2.1	1.1	15.1	9.4	7.0	5.0	33.0	24	12.5	6.0
	Liquid Flow	LPH	8.7	7.2	6.1	4.9	22.7	14.4	7.9	4.2	57.2	35.6	26.5	18.9	125	90.8	47.3	22.7
	Air Flow	SCFM	1.0	1.3	1.5	1.7	5.2	6.4	7.3	8.1	3.4	4.5	5.1	5.9	3.4	4.6	5.9	7.4
	Air Flow	SLPM	28	37	42	48	147	181	207	229	96	127	144	167	96	130	167	210
40 PSI / 2.8 BAR	Air Pressure	PSI	30	38	44	48	48	65	75	80	38	46	52	56	32	40	46	50
	Air Pressure	BAR	2.1	2.6	3.0	3.3	3.3	4.5	5.2	5.5	2.6	3.2	3.6	3.9	2.2	2.8	3.2	3.4
	Liquid Flow	GPH	2.7	2.3	1.9	1.7	7.0	3.6	1.4	0.8	18	13.1	9.6	7.3	46.5	30.0	16.5	10.3
	Liquid Flow	LPH	10.2	8.7	7.2	6.4	26.5	13.6	5.3	3.0	68.1	49.6	36.3	27.6	176	114	62.5	39.0
	Air Flow	SCFM	1.2	1.5	1.7	2.0	5.9	8.1	9.8	10.2	4.1	5.1	6.0	6.6	2.8	5.1	6.8	8.2
	Air Flow	SLPM	34	42	48	57	167	229	277	289	116	144	170	187	79	144	193	232
60 PSI / 4.1 BAR	Air Pressure	PSI	40	52	62	70	65	80	90	100	54	65	75	85	42	50	58	70
	Air Pressure	BAR	2.8	3.6	4.3	4.8	4.5	5.5	6.2	6.9	3.7	4.5	5.2	5.9	2.9	3.4	4.0	4.8
	Liquid Flow	GPH	3.3	2.8	2.3	1.9	9.9	6.6	4.5	2.4	23	17.1	12.3	7.3	66	54.0	39.0	15.8
	Liquid Flow	LPH	12.5	10.6	8.7	7.2	37.5	25.0	17.0	9.1	87.1	64.7	46.6	27.6	250	204	148	60
	Air Flow	SCFM	1.5	1.9	2.4	2.8	7.0	8.6	10.1	11.3	5.3	6.7	8.0	9.6	2.7	4.3	6.6	10.2
	Air Flow	SLPM	42	54	68	79	198	244	286	320	150	190	227	272	76	122	187	289

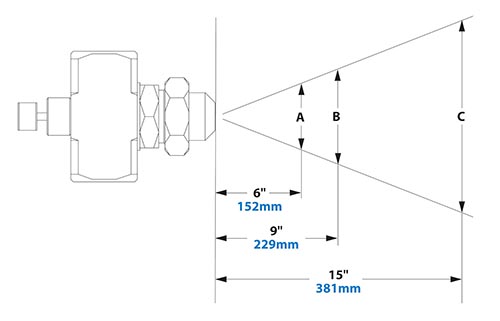

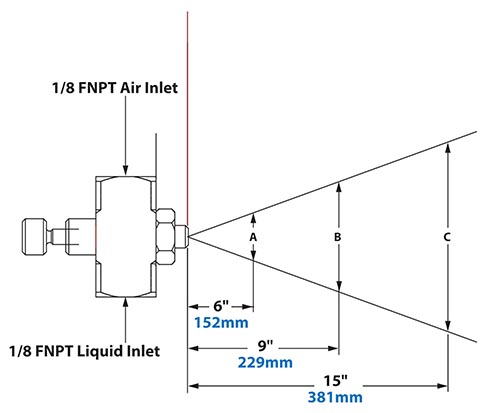

Spray Dimensions Internal Mix Narrow Angle Round Pattern Atomizing Nozzle (1/8 FNPT Models)

Model	Air Pressure	Liquid Pressure	Width	Max Depth
PSI	BAR	PSI	BAR	A	B	C	ft	m
in	cm	in	cm	in	cm
AN8010SS	10	0.7	10	0.7	3	8	3.5	9	4.5	11	3.5	1.1
18	1.2	20	1.4	3	8	4	10	5	13	5	1.5
32	2.2	30	2.1	3	8	4	10	5.5	14	7	2.1
48	3.3	40	2.8	3	8	4.5	11	6	15	8	2.4
AN8020SS	10	0.7	10	0.7	2	5	3	8	4	10	5	1.5
20	1.4	20	1.4	2.5	6	3.5	9	4.5	11	7	2.1
32	2.2	30	2.1	2.5	6	3.5	9	4.5	11	7	2.1
70	4.8	60	4.1	3.5	9	4.5	11	6.5	17	10	3.0
AN8030SS	12	0.8	10	0.7	2	5	3	8	4.5	11	6	1.8
26	1.8	20	1.4	2.5	6	3.5	9	5	13	6	1.8
52	3.6	40	2.8	3	8	4	10	6	15	11	3.4
70	4.8	60	4.1	4	10	5	13	6.5	17	11	3.4
AN8040SS	16	1.1	10	0.7	2.5	6	3	8	4	10	10	3.0
32	2.2	20	1.4	3	8	4	10	5.5	14	11	3.4
80	5.5	40	2.8	3	8	4	10	5.5	14	13	4.0
100	6.9	60	4.1	3.5	9	4.5	11	6	15	15	4.6
AN8050SS	12	0.8	10	0.7	3	8	4	10	6	15	9	2.7
22	1.5	20	1.4	3	8	4	10	6	15	11	3.4
38	2.6	30	2.1	3	8	4.5	11	6	15	14	4.3
85	5.9	60	4.1	4	10	5	13	6.5	17	16	4.9

Internal Mix Narrow Angle Round Pattern - 1/8 NPT

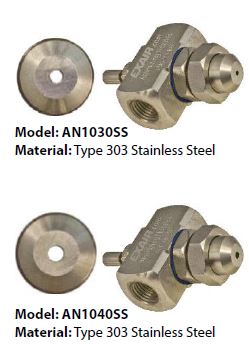

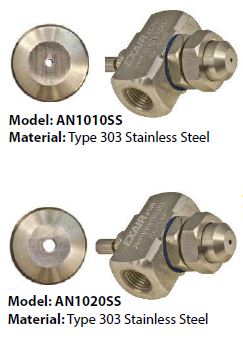

Internal Mix Narrow Angle Round Pattern - 1/4 NPT

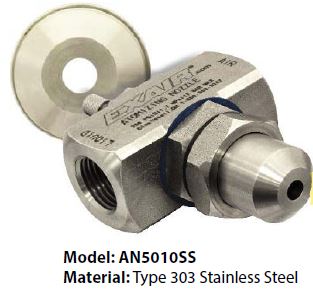

Internal Mix Narrow Angle Round Pattern - 1/2 NPT

Washing
Rinsing
Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile

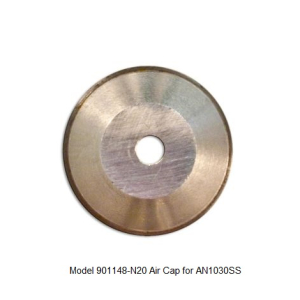

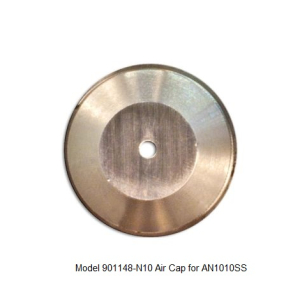

Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization
