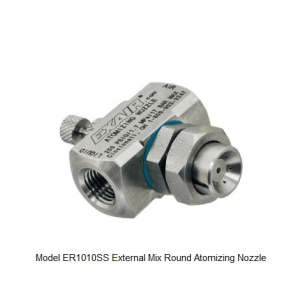

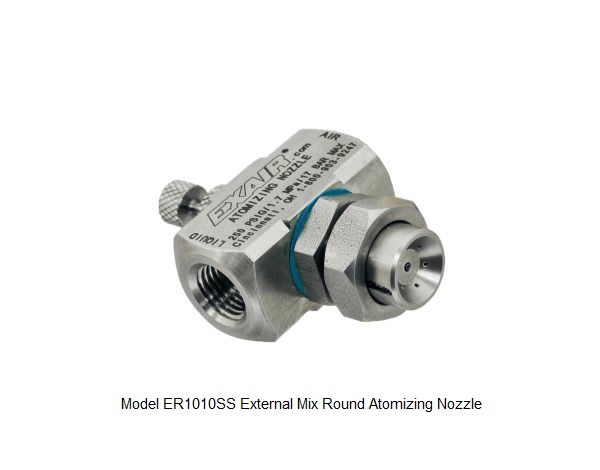

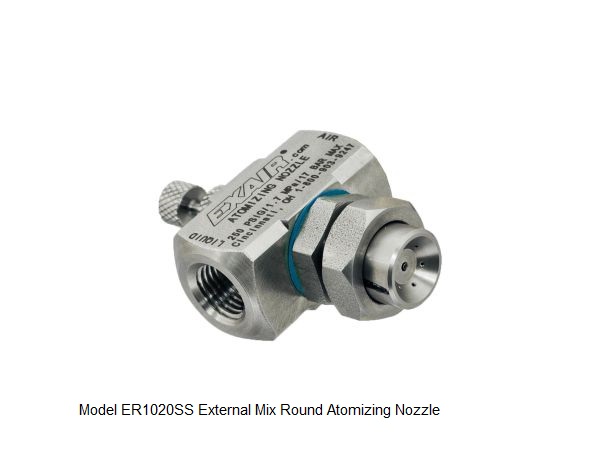

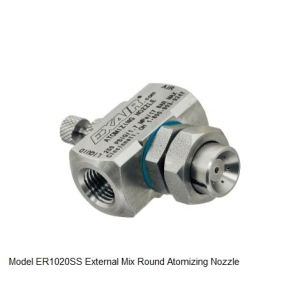

External Mix Round Air Atomizing Nozzle

EXAIR's 1/4 FNPT external mix round pattern nozzles are ideal for applications that require a high volume of liquid over a targeted area or general region, but not in a flat spray pattern. These nozzles are perfect for spot treatments, covering irregularly shaped objects, and rinsing tasks. They also excel at controlling heavy dust and particulates. With their external mix design, both airflow and liquid flow can be independently adjusted, making them suitable for pressure-fed applications with separate air and liquid control.

Send Enquiry

Atomizing Nozzle Materials

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

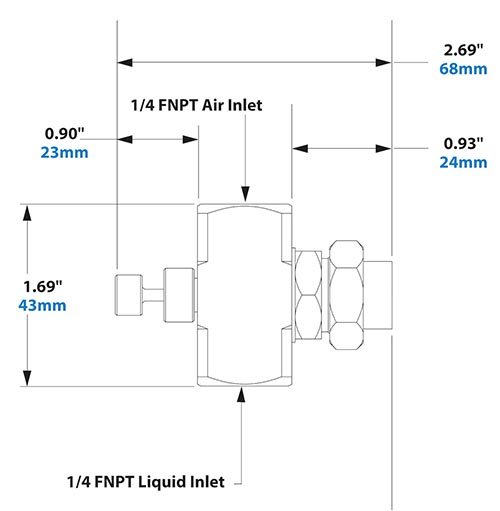

Dimensions & Performance External Mix Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			ER1010SS				ER1020SS				ER1030SS				ER1040SS				ER1050SS
3 PSI / 0.2 BAR	Air Press	PSI	5	10	20	40	6	10	30	50	10	20	40	50	15	30	40	50	40	50	60	65
	Air Press	BAR	0.3	0.7	1.4	2.8	0.4	0.7	2.1	3.4	0.7	1.4	2.8	3.4	1.0	2.1	2.8	3.4	2.8	3.4	4.1	4.5
	Liquid Flow	GPH	1.0	1.0	1.0	1.0	2.5	2.5	2.5	2.5	4.4	4.4	4.4	4.4	10.0	10.0	10.0	10.0	18.0	18.0	18.0	18.0
	Liquid Flow	LPH	3.8	3.8	3.8	3.8	9.5	9.5	9.5	9.5	16.7	16.7	16.7	16.7	37.9	37.9	37.9	37.9	16.1	16.1	16.1	16.1
	Air Flow	SCFM	0.9	1.3	1.9	3.0	0.9	1.3	2.4	3.6	4.0	6.0	9.5	11.2	4.9	7.7	9.5	11.2	14.0	16.8	19.7	21.0
	Air Flow	SLPM	25.5	36.8	53.8	85.0	25.5	36.8	68.0	102	113	170	269	317	139	218	269	317	396	470	558	595
5 PSI / 0.3 BAR	Air Press	PSI	5	10	30	50	10	20	40	60	10	20	40	60	20	30	40	60	55	65	70	80
	Air Press	BAR	0.3	0.7	2.1	3.4	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1	1.4	2.1	2.8	4.1	3.8	4.5	4.8	5.5
	Liquid Flow	GPH	1.4	1.4	1.4	1.4	3.2	3.2	3.2	3.2	5.5	5.5	5.5	5.5	13.5	13.5	13.5	13.5	26.0	26.0	26.0	26.0
	Liquid Flow	LPH	5.3	5.3	5.3	5.3	12.1	12.1	12.1	12.1	20.8	20.8	20.8	20.8	51.1	51.1	51.1	51.1	98.0	98.0	98.0	98.0
	Air Flow	SCFM	0.9	1.3	2.4	3.5	1.3	1.8	3.1	4.1	4.0	6.0	9.5	11.7	6.0	7.7	9.5	11.7	18.0	21.0	22.3	25.3
	Air Flow	SLPM	25.5	36.8	68.0	99.1	36.8	51.0	87.8	116	113	170	269	331	170	218	269	331	510	595	631	716
10 PSI / 0.7 BAR	Air Press	PSI	10	20	40	60	10	20	40	60	15	30	50	70	30	40	60	80	65	70	80	90
	Air Press	BAR	0.7	1.4	2.8	4.1	0.7	1.4	2.8	4.1	1.0	2.1	3.4	4.8	2.1	2.8	4.1	5.5	4.5	4.8	5.5	6.2
	Liquid Flow	GPH	1.9	1.9	1.9	1.9	4.3	4.3	4.3	4.3	7.6	7.6	7.6	7.6	18.8	18.8	18.8	18.8	41.0	41.0	41.0	41.0
	Liquid Flow	LPH	7.2	7.2	7.2	7.2	16.3	16.3	16.3	16.3	28.8	28.8	28.8	28.8	71.2	71.2	71.2	71.2	155	155	155	155
	Air Flow	SCFM	1.3	1.9	3.0	4.1	1.3	1.9	3.1	4.1	4.9	7.7	11.2	13.4	7.7	9.5	11.7	15.3	21.0	22.3	25.3	27.9
	Air Flow	SLPM	36.8	53.8	85.0	116	36.8	53.8	87.8	116	139	218	317	379	218	269	331	433	595	631	716	790
20 PSI / 1.4 BAR	Air Press	PSI	20	40	60	90	20	40	60	90	30	40	60	80	40	50	60	80	80	90	--	--
	Air Press	BAR	1.4	2.8	4.1	6.2	1.4	2.8	4.1	6.2	2.1	2.8	4.1	5.5	2.8	3.4	4.1	5.5	5.5	6.2	--	--
	Liquid Flow	GPH	2.7	2.7	2.7	2.7	5.9	5.9	5.9	5.9	11.0	11.0	11.0	11.0	27.6	27.6	27.6	27.6	60.0	60.0	60.0	--
	Liquid Flow	LPH	10.2	10.2	10.2	10.2	22.3	22.3	22.3	22.3	41.6	41.6	41.6	41.6	104	104	104	104	227	227	227	--
	Air Flow	SCFM	1.9	3.0	4.1	5.7	2.9	3.1	4.1	5.9	7.7	9.5	11.7	15.3	9.5	11.2	11.7	15.3	25.3	27.9	--	--
	Air Flow	SLPM	53.8	85.0	116	161	82.1	87.8	116	167	218	269	331	433	269	317	331	433	716	790	--	--
40 PSI / 2.8 BAR	Air Press	PSI	20	40	60	90	40	60	80	90	40	50	60	80	50	60	70	80	--	--	--	--
	Air Press	BAR	1.4	2.8	4.1	6.2	2.8	4.1	5.5	6.2	2.8	3.4	4.1	5.5	3.4	4.1	4.8	5.5	--	--	--	--
	Liquid Flow	GPH	3.8	3.8	3.8	3.8	7.5	7.5	7.5	7.5	14.0	14.0	14.0	14.0	31.0	31.0	31.0	31.0	--	--	--	--
	Liquid Flow	LPH	14.4	14.4	14.4	14.4	28.4	28.4	28.4	28.4	53.0	53.0	53.0	53.0	117	117	117	117	--	--	--	--
	Air Flow	SCFM	1.9	3.0	4.1	5.7	3.0	4.1	5.3	5.9	9.5	11.2	11.7	15.3	11.2	11.7	13.4	15.3	--	--	--	--
	Air Flow	SLPM	53.8	85.0	116	161	85.0	116	150	167	269	317	331	433	317	331	379	433	--	--	--	--

External Mix Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Washing
Rinsing

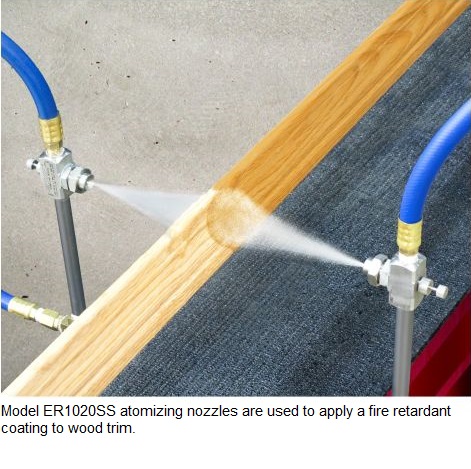

Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile

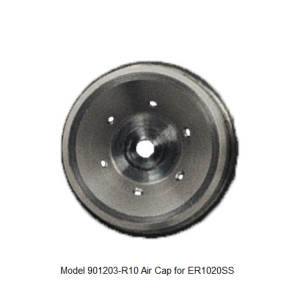

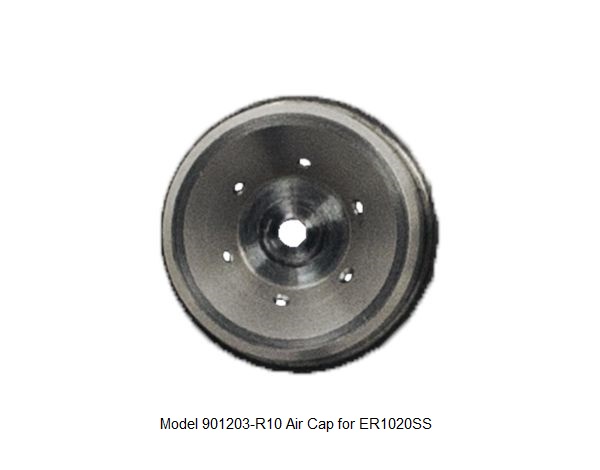

Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization

Download Catalog

External Mix Round Air Atomizing Nozzle

Atomizing Nozzle Materials

Accessories

Dimensions & Performance

External Mix Round Pattern Atomizing Nozzles

(1/4 FNPT Models)

Liquid Pressure

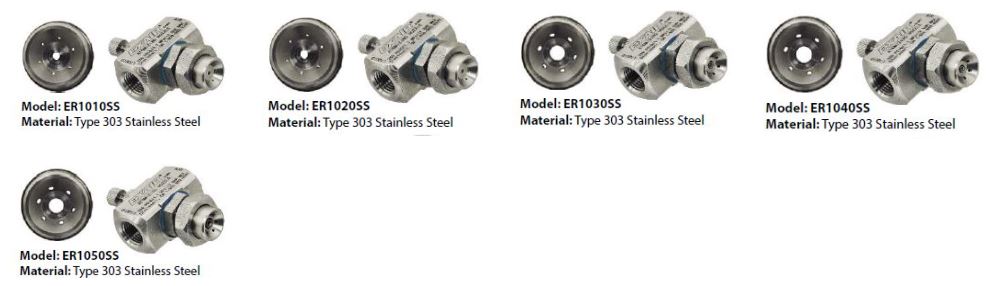

ER1010SS

ER1020SS

ER1030SS

ER1040SS

ER1050SS

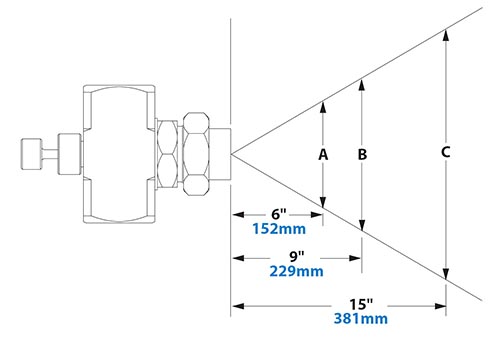

Spray Dimensions

External Mix Round Pattern Atomizing Nozzle

(1/4 FNPT Models)

Model

Air Pressure

Liquid Pressure

Width

Max Depth

PSI

BAR

PSI

BAR

A

B

C

ft

m

in

cm

in

cm

in

cm

External Mix Round Pattern Atomizing Nozzles (1/4 FNPT Models)
