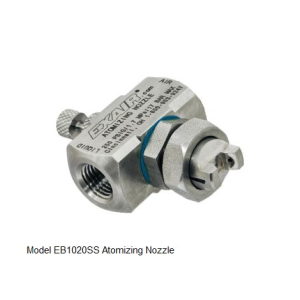

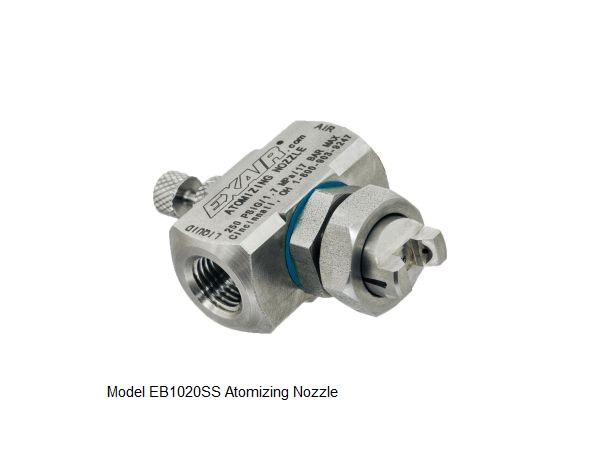

External Mix Wide Angle Flat Fan Air Atomizing Nozzle

EXAIR's 1/4 FNPT external mix wide angle flat fan pattern nozzles are ideal for applications needing a high volume of liquid spread over a wide area, like conveyor lines. These nozzles allow independent control of airflow and liquid flow due to their external mix design. They are commonly used for applications requiring moderate liquid application over broad areas, such as cooling or coating wide webs. Perfect for pressure-fed systems with separate air and liquid control.

Send Enquiry

Atomizing Nozzle Materials

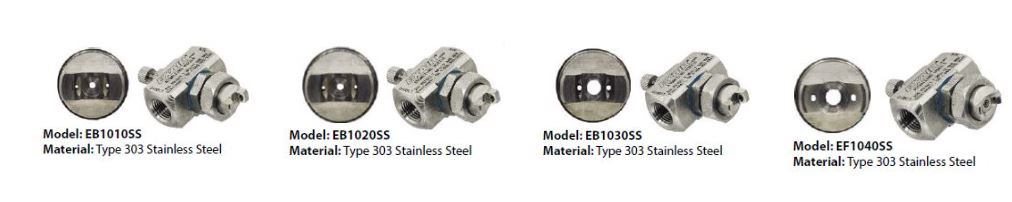

Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Accessories

Mounting Brackets: available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.

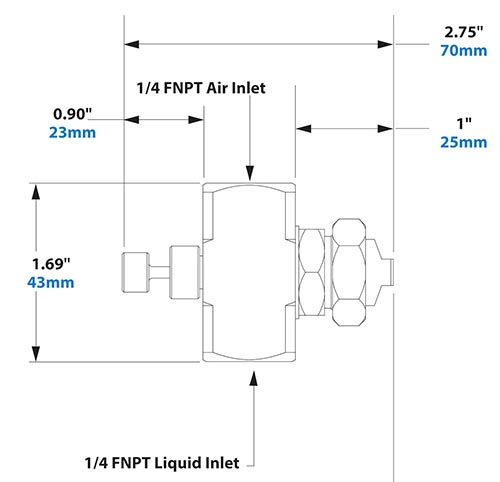

Dimensions & Performance External Mix Wide Angle Flat Pattern Atomizing Nozzles (1/4 FNPT Models)

Liquid Pressure			EB1010SS				EB1020SS				EB1030SS				EB1040SS
3 PSI / 0.27 BAR	Air Pressure	PSI	5	8	10	15	6	7	8	10	8	15	20	25	10	15	20	25
	Air Pressure	BAR	0.3	0.6	0.7	1.0	0.4	0.5	0.6	0.7	0.6	1.0	1.4	1.7	0.7	1.0	1.4	1.7
	Liquid Flow	GPH	1.0	1.0	1.0	1.0	2.5	2.5	2.5	2.5	4.4	4.4	4.4	4.4	10.0	10.0	10.0	10.0
	Liquid Flow	LPH	3.8	3.8	3.8	3.8	9.5	9.5	9.5	9.5	16.7	16.7	16.7	16.7	37.9	37.9	37.9	37.9
	Air Flow	SCFM	0.9	1.1	1.3	1.7	1.0	1.1	1.1	1.3	3.4	4.8	5.9	6.7	3.8	4.8	5.9	6.7
	Air Flow	SLPM	25.5	31.1	36.8	48.1	28.3	31.1	31.1	36.8	96.3	136	167	190	108	136	167	190
5 PSI / 0.3 BAR	Air Pressure	PSI	5	10	15	20	6	8	9	10	10	20	25	30	15	20	30	35
	Air Pressure	BAR	0.3	0.7	1.0	1.4	0.4	0.6	0.6	0.7	0.7	1.4	1.7	2.1	1.0	1.4	2.1	2.4
	Liquid Flow	GPH	1.4	1.4	1.4	1.4	3.2	3.2	3.2	3.2	5.5	5.5	5.5	5.5	13.5	13.5	13.5	13.5
	Liquid Flow	LPH	5.3	5.3	5.3	5.3	12.1	12.1	12.1	12.1	20.8	20.8	20.8	20.8	51.1	51.1	51.1	51.1
	Air Flow	SCFM	0.9	1.3	1.7	2.0	1.0	1.1	1.2	1.3	3.8	5.9	6.7	7.6	4.8	5.9	7.6	8.4
	Air Flow	SLPM	25.5	36.8	48.1	56.6	28.3	31.1	34.0	36.8	108	167	190	215	136	167	215	238
10 PSI / 0.7 BAR	Air Pressure	PSI	8	10	20	30	6	8	10	12	15	25	35	40	25	30	40	45
	Air Pressure	BAR	0.6	0.7	1.4	2.1	0.4	0.6	0.7	0.8	1.0	1.7	2.4	2.8	1.7	2.1	2.8	3.1
	Liquid Flow	GPH	1.9	1.9	1.9	1.9	4.3	4.3	4.3	4.3	7.6	7.6	7.6	7.6	18.8	18.8	18.8	18.8
	Liquid Flow	LPH	7.2	7.2	7.2	7.2	16.3	16.3	16.3	16.3	28.8	28.8	28.8	28.8	71.2	71.2	71.2	71.2
	Air Flow	SCFM	1.1	1.3	2.0	2.6	1.0	1.1	1.3	1.5	4.8	6.7	8.4	9.3	6.7	7.6	9.3	10.1
	Air Flow	SLPM	31.1	36.8	56.6	73.6	28.3	31.1	36.8	42.5	136	190	238	263	190	215	263	286
20 PSI / 1.4 BAR	Air Pressure	PSI	10	20	30	35	10	12	15	20	35	45	55	60	45	50	70	80
	Air Pressure	BAR	0.7	1.4	2.1	2.4	0.7	0.8	1.0	1.4	2.4	3.1	3.8	4.1	3.1	3.4	4.8	5.5
	Liquid Flow	GPH	2.7	2.7	2.7	2.7	5.9	5.9	5.9	5.9	11.0	11.0	11.0	11.0	27.6	27.6	27.6	27.6
	Liquid Flow	LPH	10.2	10.2	10.2	10.2	22.3	22.3	22.3	22.3	41.6	41.6	41.6	41.6	104	104	104	104
	Air Flow	SCFM	1.3	2.0	2.6	3.0	1.3	1.5	1.7	2.0	8.4	10.1	11.7	12.0	10.1	11.0	13.4	14.8
	Air Flow	SLPM	36.8	56.6	73.6	85.0	36.8	42.5	48.1	56.6	238	286	331	340	286	311	379	419
40 PSI / 2.8 BAR	Air Pressure	PSI	15	20	30	35	20	25	30	35	50	65	85	95	75	85	95	100
	Air Pressure	BAR	1.0	1.4	2.1	2.4	1.4	1.7	2.1	2.4	3.4	4.5	5.9	6.5	5.2	5.9	6.5	6.9
	Liquid Flow	GPH	3.8	3.8	3.8	3.8	7.5	7.5	7.5	7.5	14.0	14.0	14.0	14.0	31.0	31.0	31.0	31.0
	Liquid Flow	LPH	14.4	14.4	14.4	14.4	28.4	28.4	28.4	28.4	53.0	53.0	53.0	53.0	117	117	117	117
	Air Flow	SCFM	1.7	2.0	2.6	3.0	2.0	2.3	2.6	3.0	11.0	12.3	15.7	16.8	13.7	15.7	16.8	18.3
	Air Flow	SLPM	48.1	56.6	73.6	85.0	56.6	65.1	74.0	85.0	311	348	445	476	388	445	476	518

External Mix Round Pattern Atomizing Nozzles (1/4 FNPT Models)

Washing

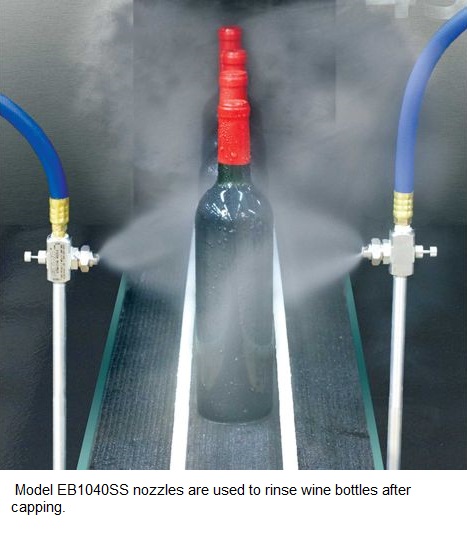

Rinsing
Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile

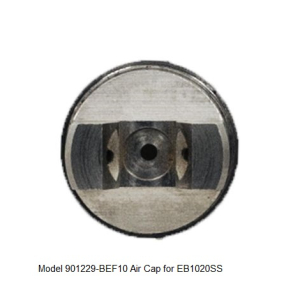

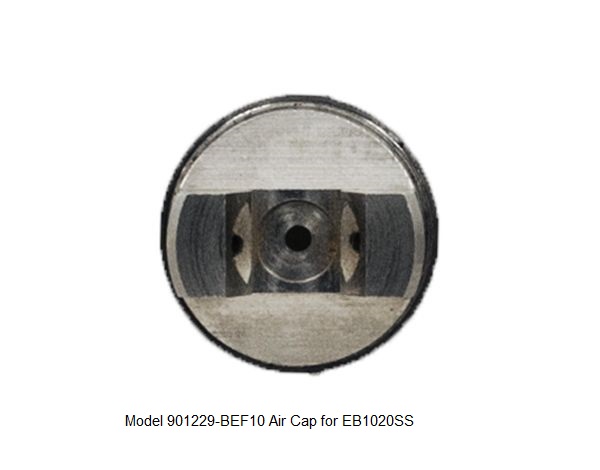

Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization

Download Catalog

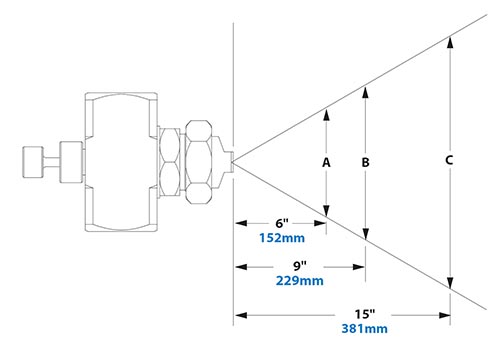

Spray Dimensions External Mix Wide Angle Flat Fan Pattern Atomizing Nozzle (1/4 FNPT Models)

Model	Air Pressure		Liquid Pressure		Width						Max Depth
	PSI	BAR	PSI	BAR	A		B		C		ft	m
	PSI	BAR	PSI	BAR	in	cm	in	cm	in	cm	ft	m
EB1010SS	10	0.7	5	0.3	8.0	20.3	11.0	27.9	14.0	35.6	9	2.7
	15	1.0	10	0.7	9.0	22.9	12.0	30.5	17.0	43.2	11	3.4
	20	1.4	20	1.4	9.3	23.6	14.0	35.6	19.0	48.3	11	3.4
	25	1.7	30	2.1	11.0	27.9	15.0	38.1	20.0	50.8	13	4.0
	25	1.7	40	2.8	11.0	27.9	15.0	38.1	21.0	53.3	14	4.3
EB1020SS	8	0.6	5	0.3	11.0	27.9	16.0	40.6	19.0	48.3	8	2.4
	15	1.0	20	1.4	11.0	27.9	16.0	40.6	21.0	53.3	11	3.4
	20	1.4	20	1.4	12.0	30.5	17.0	43.2	22.0	55.9	12	3.7
	25	1.7	30	2.1	13.0	33.0	18.0	45.7	24.0	61.0	12	3.7
	30	2.1	40	2.8	13.0	33.0	19.0	48.3	24.0	61.0	14	4.3
EB1030SS	15	1.0	3	0.2	11.0	27.9	17.0	43.2	21.0	53.3	13	4.0
	25	1.7	10	0.7	12.0	30.5	18.0	45.7	23.0	58.4	16	4.9
	45	3.1	20	1.4	13.0	33.0	19.0	48.3	24.0	61.0	21	6.4
	60	4.1	30	2.1	14.0	35.6	18.0	45.7	24.0	61.0	26	7.9
	70	4.8	40	2.8	14.0	35.6	18.0	45.7	24.0	61.0	30	9.1
EB1040SS	30	2.1	5	0.3	13.0	33.0	19.0	48.3	24.0	61.0	17	5.2
	45	3.1	20	1.4	14.0	35.6	20.0	50.8	26.0	66.0	19	5.8
	65	4.5	20	1.4	15.0	38.1	21.0	53.3	27.0	68.6	23	7.0
	80	5.5	20	1.4	15.0	38.1	22.0	55.9	28.0	71.1	26	7.9
	90	6.2	40	2.8	16.0	40.6	22.0	55.9	28.0	71.1	26	7.9

External Mix Wide Angle Flat Fan Air Atomizing Nozzle

Atomizing Nozzle Materials

Accessories

Dimensions & Performance

External Mix Wide Angle Flat Pattern Atomizing Nozzles

(1/4 FNPT Models)

Liquid Pressure

EB1010SS

EB1020SS

EB1030SS

EB1040SS

Spray Dimensions

External Mix Wide Angle Flat Fan Pattern Atomizing Nozzle

(1/4 FNPT Models)

Model

Air Pressure

Liquid Pressure

Width

Max Depth

PSI

BAR

PSI

BAR

A

B

C

ft

m

in

cm

in

cm

in

cm

External Mix Round Pattern Atomizing Nozzles (1/4 FNPT Models)
