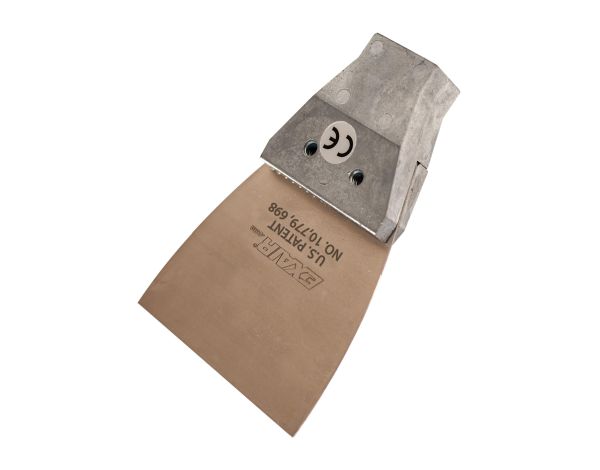

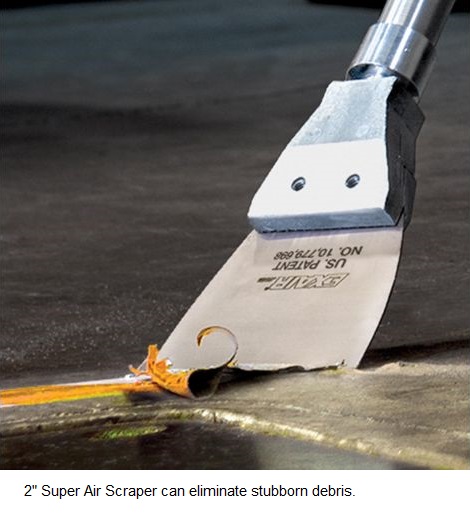

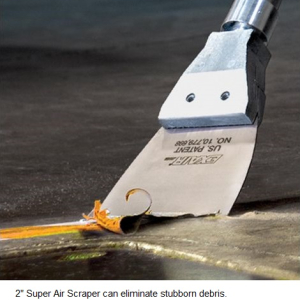

EXAIR's 2" Super Air Scraper™ is a unique, highly efficient, corrosion resistant steel scraper used in conjunction with EXAIR's 2" Flat Super Air Nozzle™. The patented† design of this scraper aids in the powerful compressed air flow removal of debris. This product is perfect for removal of caulk, sealant, adhesives, tape, paint, stickers, labels, grease, lubricant and difficult to sweep metal chips, flakes or discs all with minimal air consumption and noise.

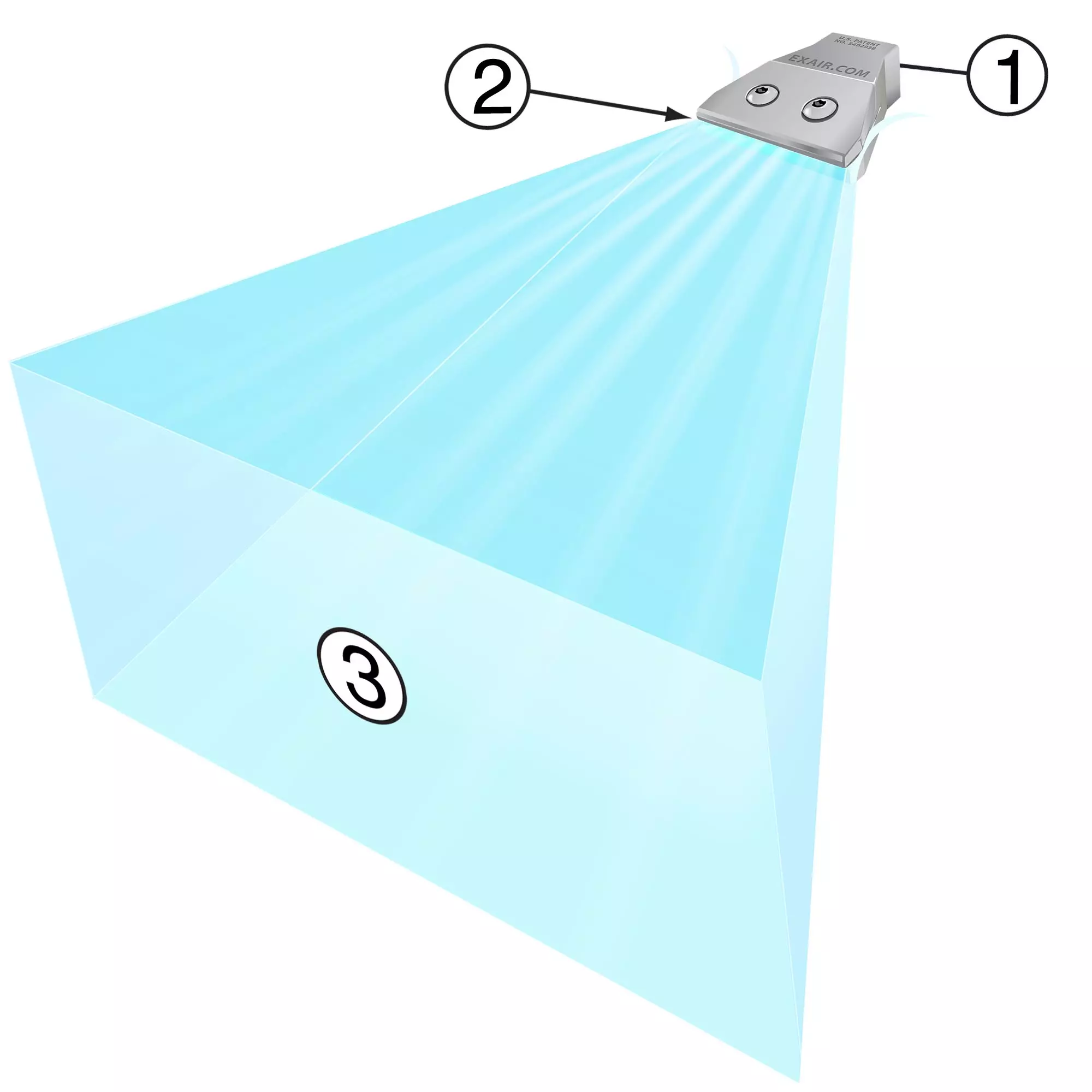

Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle. The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line. This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle. Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1. The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.
Zinc Aluminum alloy - general purpose applications. Maximum temperature: 250°F (121°C).

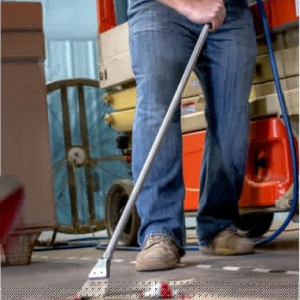

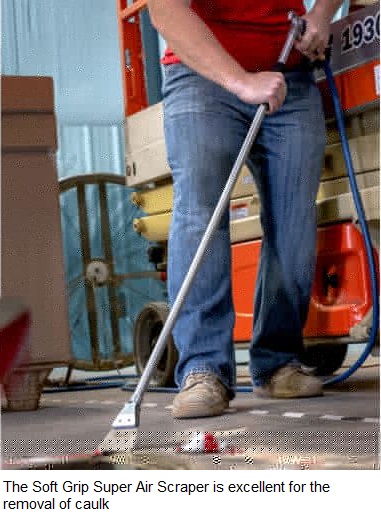

Steel Scraper is excellent for removal of caulk, gaskets, sealants, paint and more. Maximum temperature: 250°F (121°C).
2" Super Air Scraper™ Performance | |||||
| Air Consumption | Force | Sound Level | |||
| Model | SCFM | SLPM | Ozs | Grams | dBA |
| 1144 | 21.8 | 622 | 22* | 624 | 77 |
| * Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR). .015" (0.38mm) shim installed. | |||||
2" Super Air Scraper™ Models |
||||||||
| Model | Material | Description | Inlet | Air Consumption | Force | Sound Level (dBA) | ||
| SCFM | SLPM | Ozs | Grams | |||||
| 1144 | Zinc Aluminum alloy | 2" Super Air Scraper | 1/4 FNPT | 21.8 | 622 | 22† | 624 | 77 |
| FNPT = NPT Female MNPT = NPT Male. | ||||||||
| † Force measured at 12" (305mm) from target with a .015" (0.38mm) shim installed. | All sound levels measured at 3 feet (914mm) | |||||||
| All measurements taken at 80 PSIG (5.5 BAR) | ||||||||
| 1132SS |
| Stainless Steel 1" Flat Super Air Nozzle Shim Set |
Shim sets for the 1" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm), and .020" (0.51mm) thick shim.
This corrosion resistant steel blade provides the scraping functionality of our Model 1144 2" Super Air Scraper.
